6. Data Preparation

6.1. Introduction

This chapter describes how to prepare data for storage within the DTOcean database. Data representing sites and devices are covered in extended detail. Storage of sites and devices in the persistent database allows reuse across multiple projects. For sites this also gives access to automatic computational domain resizing.

A list of all database tables and their association to variables within DTOcean is given in the last section of the chapter. This includes the site and device tables, and the tables that store reference data to be used in all simulations. Data that is relevant only to a single project is not stored in the DTOcean database and is not discussed here.

6.2. Site

6.2.1. Conventions

The following conventions are used for site data used within DTOcean: [1]

• Depths are negative

• The datum for depths is mean sea level

• Wave directions are described using coming-from convention. Wave height and period conventions differ between variables.

• Current directions are described using going-to convention

• Wind speeds are measured at a reference height of 10m and the direction uses coming-from convention

6.2.2. Boundaries

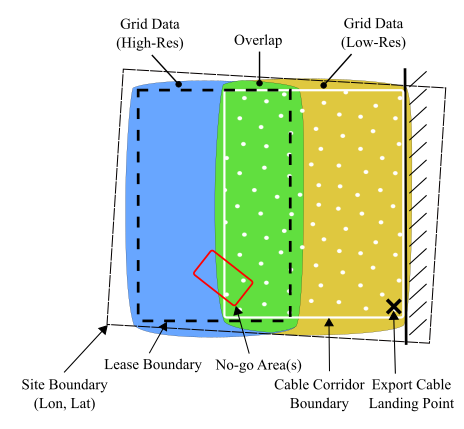

Fig. 6.1 Schematic of spatial site data

DTOcean uses two computational grids to store bathymetric, sedimentary and any environmental data that varies over the domain. The first grid covers the area where devices are to be deployed, known as the lease area, and the other covers the area where the export cable may be placed, known as the cable corridor. The lease area grid is normally of higher resolution than the cable corridor grid. The two areas must also overlap, as seen in Fig. 6.1, and, more precisely, contain coincident points. As such, it is recommended that the low resolution grid spacing be a multiple of the high resolution grid. Details regarding defining these grids is provided in the Grids section.

The extents of the grids are demarcated by two polygons, the lease boundary and cable corridor boundary. These polygons allow the user to modify the size of the computational domain and reduce the amount of grid data collected from the DTOcean database. Note, an overlapping region must be maintained when modifying the lease and cable corridor boundaries. The cable corridor landing point is also shown in Fig. 6.1, that marks the termination of the export cable at the shoreline. Although not a boundary, this should be included in the database so that the user can ensure it remains within the cable corridor following modifications. Within the lease area or cable corridor, additional polygons can be defined that excludes any grid points within them from computation. These areas are known as no-go areas and the user can define as many as required for a particular site.

All features described thus far are given in (UTM-like) conformal projection coordinates (see Grids). A final outer boundary, known as the site boundary, is defined using geodesic coordinates, to show the location of the site on a map. This is also why the polygon shown in Fig. 6.1 is slightly skewed.

Most of the features described above are stored in the project.site table of the DTOcean database (see the Database Tables section). An example entry to the table (following being dumped to a file) is shown in Table 6.1. The geo-spatial objects are represented as WKT strings, but are stored as binary objects in the DTOcean database itself. No-go areas are stored in the project.constraint and project.cable_corridor_constraint tables.

Table 6.1 Example entry to ‘site’ table

Column	Example Row	Notes
id	1
site_name	Eureka, CA
lease_area_proj4_string	+proj=utm +zone=10 +ellps=WGS84 +datum=WGS84 +units=m +no_defs	See Grids
site_boundary	SRID=4326;POLYGON ((-124.15 40.75, -124.375 40.75, -124.375 40.925, -124.15 40.925, -124.15 40.75))	WKT Polygon in WGS84 coordinates
lease_boundary	POLYGON ((391250 4517000, 386000 4520000, 391500 4529450, 396650 4526600, 391250 4517000))	WKT Polygon in local projection coordinates
corridor_boundary	POLYGON ((398600 4518300, 392800 4521500, 395900 4527000, 401600 4524000, 398600 4518300))	WKT Polygon in local projection coordinates
cable_landing_location	POINT (398575 4518325)	WKT Point in local projection coordinates

6.2.3. Grids

DTOcean requires two Cartesian grids for describing data that varies over the lease area and cable corridor. These grids are drawn using a conformal projection, with units of metres, similar, but not restricted to, Universal Transverse Mercator (UTM) projections. When entering grid data into the DTOcean database, the projection used for the grids must also be included. DTOcean uses a Proj4 string to define projections. For instance,

+proj=utm +zone=10 +ellps=WGS84 +datum=WGS84 +units=m +no_defs

describes the WGS 84 / UTM zone 10N projection. Any conformal projection with units of metres is valid, but note that the validity of the projection is not checked by the software. The projection is stored in the project.site table of the DTOcean database (see the Boundaries section).

The data on the grid is stored in points at it’s vertices, as seen in Fig. 6.2. The spacing of the grid must be uniform in the x and y directions but can differ between them. When entering points into the DTOcean database, those which lie outside of the boundary polygon do not need to be included. When reading the grid from the database, DTOcean will add points with NaN value to create a rectangular grid. When exporting and importing grids using file formats such as NetCDF, these NaN points are included.

Fig. 6.2 Plan view of the computational grid

6.2.4. Bathymetry and Sediments

Grids may also be defined with multiple layers. These layers can be used to define sedimentary layers, time series, etc. Fig. 6.3 shows the schematic for the storage of sedimentary data in DTOcean. Two values for each layer of sediment are associated to every grid point – the depth at which the sediment layer starts and the sediment type for that layer. The depth of the first layer represents the seabed bathymetry and the last defined layer is assumed to have infinite depth. A minimum of one sediment layer must be provided.

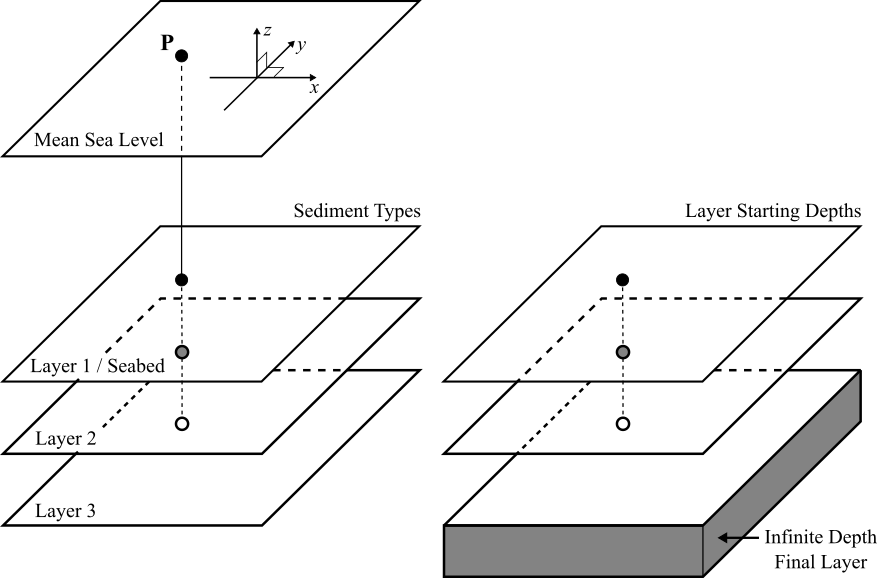

Fig. 6.3 Schematic of the data structure for describing sedimentary layers

The database definition of the sediment layers differs slightly from this definition, in that the distance of the start of each layer below the sea floor is used rather than the depth below sea level. An example of a single grid point definition, containing two sediment layers, defined in the project.bathymetry and project.bathymetry_layer tables, is show in Table 6.2 and Table 6.3.

The fk_bathymetry_id column in the bathymetry_layer table references the id column of the associated point in the bathymetry table. A reference to an id in the reference.soil_type table (shown in Table 6.4) is added to the fk_soil_type_id column of the bathymetry_layer table to select which sediment type belongs to the layer. Note, it is only necessary to include a value in the mannings_no column of the bathymetry table when the site will be used for tidal current energy extraction.

Table 6.2 Example entry to ‘bathymetry’ table

Column	Example Row	Notes
id	1
utm_point	POINT (391505 6651003)	WKT format (after dump)
depth	-50	(m -ve)
mannings_no	0.3	Used only for tidal energy

Table 6.3 Example entries to ‘bathymetry_layer’ table

Column	Layer 1 Example	Layer 2 Example	Notes
id	1	2
fk_bathymetry_id	1	1	References id in Table 6.2
fk_soil_type_id	6	11	References id in Table 6.4
layer_order	1	2	Indexed from 1
initial_depth	0	10	Measured from the sea floor (m +ve)

Table 6.4 Contents of ‘soil_type’ table

id	description
1	loose sand
2	medium sand
3	dense sand
4	very soft clay
5	soft clay
6	firm clay
7	stiff clay
8	hard glacial till
9	cemented
10	soft rock coral
11	hard rock
12	gravel cobble

6.2.5. Environmental Data

6.2.5.1. Tidal Current Energy

When defining a site for tidal current energy extraction, layers of grid points are used to define the the currents throughout the domain. Table 6.5 shows an example of two hours of current data defined in the project.time_series_energy_tidal table for the example point shown in Table 6.2. Table 6.2 should also have the Manning’s number (mannings_no column) defined for each point in tidal current energy scenarios.

Common practice, thus far, is to prepare two weeks of hourly tidal current data (between the flood and neap tides). Thus the project.time_series_energy_tidal table will contain 336 rows for every grid point defined. This table is easily the largest stored within the DTOcean database and the user must take care that it does not become computationally unmanageable. The recommended upper limit is approximately \(5 \times 10^{6}\) rows (per site), and the grid resolution of the site should be adapted accordingly. For each entry to the time_series_energy_tidal table, the velocity components in the x and y directions (columns u and v respectively), the turbulence intensity and the sea surface elevation w.r.t. mean sea level (column ssh) must be provided.

Table 6.5 Example entries to ‘time_series_energy_tidal’ table

Column	Hour 1 Example	Hour 2 Example	Notes
id	1	2
fk_bathymetry_id	1	1	References id in Table 6.2
measure_date	01/01/2016	01/01/2016
measure_time	00:00:00	01:00:00
u	2.1	2	(m/s)
v	1.05	1.05	(m/s)
turbulence_intensity	0.038586782	0.033037681
ssh	0.35	0.35	Sea surface elevation w.r.t. MSL (m)

6.2.5.2. Wave Energy

For a site to be used for wave energy extraction, a time series at a single representative point (rather than the entire grid) is required; it is assumed that the wave conditions do not vary across the grid. Hourly values for the following quantities are required:

• significant wave height (\(H_{s}\))

• wave energy period (\(T_{e}\))

• wave direction

The duration of all series must match and it is recommended that at least one year of data is provided, but a longer period will result in improved energy production predictions. The series are stored in the project.time_series_energy_wave table. See the Database Tables section for further details.

6.2.5.3. Logistics

Representative time series are also needed for logistics calculations. Hourly values for the following quantities are required for a single representative point:

• significant wave height

• wave peak period (\(T_{p}\))

• surface current magnitude

• wind magnitude

The series must have matching durations and be at least one year in length, but longer periods are recommended. They are stored within the DTOcean database using the project.time_series_om_wave, project.time_series_om_tidal and project.time_series_om_wind tables. See the Database Tables section for further details.

6.2.5.4. Extremes

The extreme conditions within the lease area must be known for balance of plant design. The following information should be provided (the recommended return period is shown in brackets):

• Long term sea surface current characteristics (10 year return period)

  • Maximum

  • Predominant direction

• Long term wave characteristics (50 year return period)

  • Maximum \(H_{s}\)

  • Maximum \(T_{p}\)

  • Predominant direction

  • Representative gamma for a Jonswap spectrum

• Long term wind characteristics (100 year return period)

  • Maximum speed

  • Predominant direction

  • Maximum gust speed

  • Predominant gust direction

• Long term water level characteristics (50 year return period)

  • Maximum

  • Minimum

This data is stored in the project.lease_area table and further details can be found in the Database Tables section.

6.3. Device

6.3.1. Conventions and Dimensions

The following conventions are used when defining a device in DTOcean or its database: [1]

• Devices are categorised into one of four types: Wave or Tidal and Fixed or Floating

• Devices can have either Cylindrical or Rectangular profile

• Cylindrical devices are always orientated vertically (as in Fig. 6.4)

• The System Width variable describes the diameter of a cylindrical device. The System Length variable is unused.

• The local origin of a floating device lies on the waterline of the at-rest position of the device (see Fig. 6.4)

• The local origin of a fixed device lies at the base of the device (see Fig. 6.6)

• Height, width, length and draft are always given as absolute values

• Other dimensions are relative to the local origin

• For floating devices each foundation defined must have a matching fairlead on the device

• Floating devices must have an umbilical cable connection point defined

• A footprint must be given for floating devices, to describe the area swept by the device and its moorings. This can be given as a radius or a polygon in the local coordinate system.

• The vertical coordinate of foundation locations is unused

• Minimum and maximum installation depths are directional, i.e. the minimum depth is the deepest water in which the device can be deployed

• A minimum distance between devices in the x and y directions of the local coordinate system must be given

• Devices may yaw symmetrically up to an angle of 180 degrees

• Tidal devices may have two rotors, placed symmetrically perpendicular to the oncoming flow, in the horizontal plane

The name and type of a device is added to the project.device table (see the Database Tables section). The device_type column has four (case sensitive) values that can be used:

• Tidal Fixed

• Tidal Floating

• Wave Fixed

• Wave Floating

Examples of dimensions for floating and fixed devices (wave or tidal), having cylindrical and rectangular profile, respectively, are shown in Fig. 6.4, Fig. 6.5 and Fig. 6.6. The related nomenclature is given in Table 6.6.

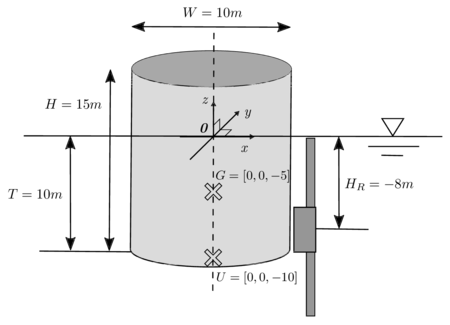

Fig. 6.4 Floating, cylindrical device dimensions example (side view)

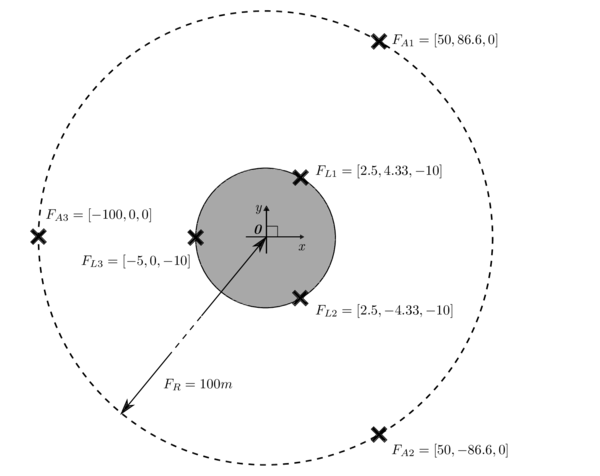

Fig. 6.5 Floating, cylindrical device dimensions example (top view)

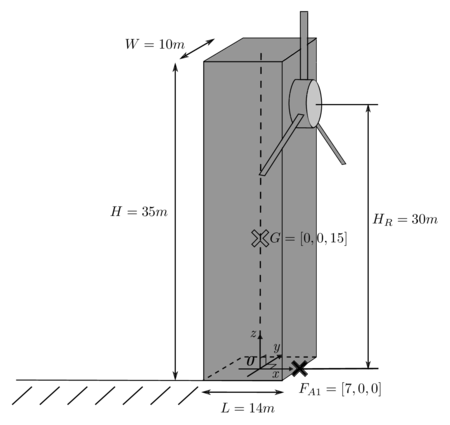

Fig. 6.6 Fixed, rectangular device dimensions example

Table 6.6 Nomenclature for device dimensions examples

Symbol	Variable Name	Units	Notes
\(H\)	System Height	m
\(W\)	System Width	m	Acts as diameter of cylindrical devices
\(L\)	System Length	m
\(T\)	Floating Device Draft	m	Always positive
\(H_{R}\)	Tidal Device Hub Height	m	Tidal devices only
\(G\)	System Centre of Gravity	m
\(U\)	Umbilical Cable Device Connection Point	m	Floating devices only
\(F_{L}\)	Fairlead Locations	m	Floating devices only
\(F_{A}\)	Device Foundation Locations	m
\(F_{R}\)	Footprint Radius	m	Floating devices only

Technology agnostic dimensions are added to the project.device_shared table of the DTOcean database. The profile column has only two (case sensitive) valid values which are:

• Cylindrical

• Rectangular

Floating device specific dimensions are added to the project.device_floating table. The depth_variation_permitted column of this table indicates if a vertical position of a floating device may vary. The valid values for this column are:

• yes

• no

Note that this value is superseded if the prescribed_mooring_system column is filled. The following (case sensitive) values can be used:

• Catenary

• Taut

Tidal device specific dimensions are stored in the project.device_tidal table. The rotor hub height and rotor diameter must be given in the hub_height and turbine_diameter columns, respectively. If the device has two rotors the turbine_interdistance column is used to describe the horizontal distance of the rotor hub from the device centre line (when orientated with the oncoming flow).

6.3.2. Power Conversion and Transmission

DTOcean requires the conversion performance of the simulated device to be known prior to simulation. For wave devices, the performance data must be calculated using the WEC Simulator tool (see the :ref:`tools` chapter). This is necessary to allow calculation of the interactions between devices within DTOcean. An output folder is produced by the tool, and the path to this folder can be stored in the project.device_wave table of the DTOcean database (see the Database Tables section).

For tidal energy devices, traditional power and thrust curves are required. These are entered into the project.device_tidal_power_performance table of the DTOcean database and an example of this table is shown in Table 6.7; a plot of this data is shown in Fig. 6.7. Cut-in and cut-out velocities are entered into the project.device_tidal table. Negative velocities may not be used in the performance curves, but the given power curve can be used for negative velocities if the two_ways_flow column of the project.device_tidal table is set to yes. If this value is no then no power will be produced for reversed flow through the rotor(s).

Table 6.7 Example device_tidal_power_performance table entries

id	velocity	thrust_coefficient	power_coefficient
1	0	0.91	0
2	0.5	0.87	0.04
3	1	0.8	0.09
4	1.5	0.68	0.14
5	2	0.51	0.2
6	2.5	0.4	0.25
7	3	0.3	0.31
8	3.5	0.25	0.38
9	4	0.2	0.42
10	4.5	0.15	0.44
11	5	0.1	0.44
12	5.5	0	0
13	6	0	0

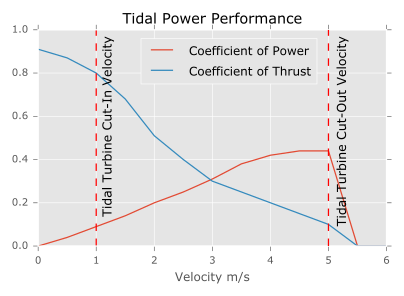

Fig. 6.7 Example tidal current device performance curves

Regardless of technology, the devices rated power and output voltage (U0) must be supplied. These values are added to the DTOcean database in the project.device_shared table. Note, any power generated above the device rating will be dumped. The type of connector used to couple the device to the electrical architecture must also be specified. The connector_type column has two valid (case sensitive) values:

• Wet-Mate

• Dry-Mate

A constant or variable power factor should also be given in the constant_power_factor or variable_power_factor columns, respectively. The variable power factor is given as a list of tuples defined as {power in pu, power factor}. An example entry to the variable_power_factor column may be:

{{1, 1}, {0.8, 0.9}, {0.5, 0.8}}

For floating devices the umbilical cable may be preselected using a value from the id column of the reference.component_cable. Only cables with fk_component_type_id column value 2 are valid. The id can be added to the prescribed_umbilical_type column of the project.device_floating table.

6.3.3. Sub-systems

For installation and life-time maintenance simulation, devices are divided into three or, optionally, four sub-systems. These sub-systems are:

• Support Structure: the main structural component of the device

• Prime Mover: the device’s source of motive power

• Power Take Off (PTO): the system responsible for conversion of motive power to electricity

• Control [optional]: computational / mechanical equipment for device motion control

Examples of how these sub-systems may be allocated in a tidal current or wave energy device are shown in Fig. 6.8 and Fig. 6.9.

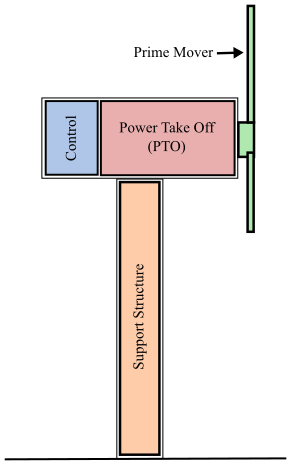

Fig. 6.8 Example sub-systems in a tidal current device

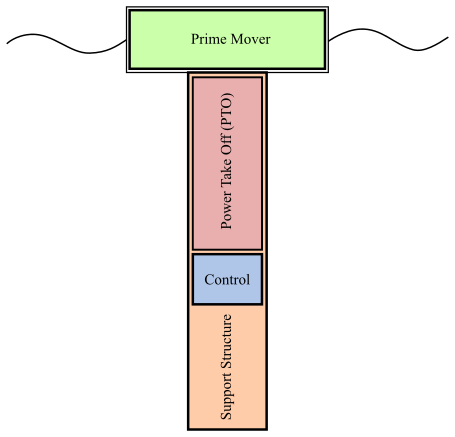

Fig. 6.9 Example sub-systems in a wave device

6.3.4. Installation

Installation of the device can be either as a single solid whole, or the support structure is installed first, followed by the remaining components. The choice is stored in the two_stage_assembly column of the project.device_shared table (see the Database Tables section) and can have values:

• yes

• no

How the device is transported to and from the deployment area is stored in the transportation_method column. This can have one of two (case sensitive) values:

• Deck

• Tow

If the device is to be towed then the bollard_pull column should also be filled.

The load_out_method column indicates how the device is transported from shore onto the vessel or into the water. It has four (case sensitive) valid values:

• Skidded

• Trailer

• Float Away

• Lift Away

Note that for the Deck transportation method, only the Skidded and Lift Away load-out methods are valid.

The duration required to assemble, connect and disconnect the device is added to the assembly_duration, connect_duration and disconnect_duration columns, respectively.

Installation information for the device sub-systems is stored in the project.sub_systems_install table, regardless of the choice in the two_stage_assembly column. This table dictates the allowable operational limit conditions (OLCs) when installing the device. An example entry to the table is shown in Table 6.8. Note that the fk_sub_system_id column should reference a value from the id column of the project.sub_systems table, which is shown in Table 6.9. Data for all device sub-systems to be simulated should be added.

Table 6.8 Example entries to ‘sub_systems_install’ table

Column	Example Row	Notes
id	1
fk_sub_system_id	1	References id in Table 6.9
length	20
width	20
height	4
dry_mass	200000
max_hs	2
max_tp	99
max_ws	15	Wind speed magnitude
max_cs	1.5	Surface current speed magnitude

Table 6.9 Contents of ‘sub_systems’ table

id	sub_system
1	Prime Mover
2	PTO
3	Support Structure
4	Control

6.3.5. Maintenance

Each sub-system defined within DTOcean can have three types of maintenance operation. These are “Inspection”, “Maintenance” or “Replacement”. The appropriate types for each device sub-system, and how likely they are with respect to each other must be chosen. This is partly controlled by the values given in the project.sub_systems_operation_weightings table. A set of example entries to this table is shown in Table 6.10. An operation type can be excluded by using a value of zero for the required sub-system. Weightings can take any positive value; per sub-system, the likelihood of each operation will be calculated from the relative weights.

Table 6.10 Contents of ‘sub_systems_operation_weightings’ table

id	fk_sub_system_id	maintenance	replacement	inspection
1	1	1	1	2
2	2	1	0	2
3	3	0	1	10

The project.sub_systems_operation_weightings table determines which types of action are required when a sub-system failure is triggered, but the rate of failure is determined by the value of the failure_rate column in the project.sub_systems_economic table. An example set of entries to this table is shown in Table 6.11. Failures rates are supplied as the number of failures per \(1 \times 10^{6}\) hours.

Table 6.11 Contents of ‘sub_systems_economic’ table

id	fk_sub_system_id	cost	failure_rate
1	1	485000	4
2	2	400000	20
3	3	1200000	2

Detailed information for each required operation type for each device sub-system are entered into the project.sub_systems_inspection, project.sub_systems_maintenance and project.sub_systems_replace tables. An example row for the project.sub_systems_maintenance table is shown in Table 6.12. The columns of the other two tables are a subset of the columns of this table. As the device must be accessed for all maintenance actions, the columns in project.sub_systems_access table must also be filled for any sub-systems that undergo any operation type.

Table 6.12 Example entries to ‘sub_systems_maintenance’ table

Column	Example Row	Notes
id	1
fk_sub_system_id	1	References id in Table 6.9
operation_duration	8
interruptible	yes	Can the operation be broken into parts? (yes or no)
parts_length	1	Parts required for maintenance
parts_width	1	〃
parts_height	1	〃
parts_dry_mass	25	〃
assembly_lead_time	0	Delays to commencement of operation in hours
crew_lead_time	24	〃
other_lead_time	0	〃
n_specialists	1	Two different wage levels are available
n_technicians	4	〃
max_hs	2	OLCs specific to this operation on this subsystem
max_tp	99	〃
max_ws	15	〃
max_cs	1.5	〃

6.3.6. Economics

Storage of the cost of the whole device and each of its sub-systems within the DTOcean database is as follows:

• The whole device cost is stored in the cost column of the project.device_shared table

• The sub-systems costs are stored in the cost column of the project.sub_systems_economic table

6.4. Database Tables

All database tables used in the DTOcean database are listed here, alongside additional useful information. A typical table is described as follows:

Table:

The table name

Approximate dump path:

When using the database dump function, a tree of files is generated. The path to the file representation of each table is given here. As file types can vary, each path ends .*. If the path contains a # then the tables has been split across multiple directories, sequentially numbered.

Linked to:

If one of the columns in the given table references a column in another table, then the table name (or names) of the referenced tables are given here.

See

If relevant information is available elsewhere in the chapter then a link will be provided here.

Details relating to each column are presented in a table. The headings of the table have the following meanings:

Column	The table column
Variable Name	The DTOcean variable name
Label	The sub-section of the variable (if used)
Unit	The SI unit

6.4.1. Project Schema

Table: project.bathymetry

Approximate dump path: site#\bathymetry.*

Linked to: project.site

See Bathymetry and Sediments

Column	Variable Name	Label	Unit
id
utm_point	Bathymetry
depth	Bathymetry		m
mannings_no	Manning’s Number

---

Table: project.bathymetry_layer

Approximate dump path: site#\bathymetry\bathymetry_layer.*

Linked to: reference.soil_type; project.bathymetry

See Bathymetry and Sediments

Column	Variable Name	Label	Unit
id
fk_bathymetry_id
fk_soil_type_id
layer_order	Bathymetry
initial_depth	Bathymetry		m

---

Table: project.cable_corridor_bathymetry

Approximate dump path: site#\cable_corridor_bathymetry.*

Linked to: project.site

See Bathymetry and Sediments

Column	Variable Name	Label	Unit
id
utm_point	Cable Corridor Bathymetry
depth	Cable Corridor Bathymetry		m

---

Table: project.cable_corridor_bathymetry_layer

Approximate dump path: site#\cable_corridor_bathymetry\cable_corridor_bathymetry_layer.*

Linked to: reference.soil_type; project.cable_corridor_bathymetry

See Bathymetry and Sediments

Column	Variable Name	Label	Unit
id
fk_bathymetry_id
fk_soil_type_id
layer_order	Cable Corridor Bathymetry
initial_depth	Cable Corridor Bathymetry		m

---

Table: project.cable_corridor_constraint

Approximate dump path: site#\cable_corridor_constraint.*

Linked to: project.site

Column	Variable Name	Label	Unit
id
description	No Go Areas in Cable Corridor
boundary	No Go Areas in Cable Corridor

---

Table: project.constraint

Approximate dump path: site#\constraint.*

Linked to: project.site

Column	Variable Name	Label	Unit
id
description	Nogo Areas
boundary	Nogo Areas

---

Table: project.device

Approximate dump path: device.*

Column	Variable Name	Label	Unit
id	All Available Devices	id
description	All Available Devices	description
device_type	All Available Devices	device_type

---

Table: project.device_floating

Approximate dump path: device#\device_floating.*

Linked to: project.device

Column	Variable Name	Label	Unit
id
draft	Floating Device Draft		m
maximum_displacement	Maximum System Displacement		m
depth_variation_permitted	Floating Device Submersible Option
fairlead_locations	Fairlead Locations		m
umbilical_connection_point	Umbilical Cable Device Connection Point		m
prescribed_mooring_system	Mooring System Type
prescribed_umbilical_type	Predefined Umbilical Cable Identifier

---

Table: project.device_shared

Approximate dump path: device#\device_shared.*

Linked to: project.device

Column	Variable Name	Label	Unit
id
height	System Height		m
width	System Width		m
length	System Length		m
displaced_volume	System Submerged Volume		m^{3}
wet_frontal_area	System Wet Frontal Area		m^{2}
dry_frontal_area	System Dry Frontal Area		m^{2}
wet_beam_area	System Wet Beam Area		m^{2}
dry_beam_area	System Dry Beam Area		m^{2}
centre_of_gravity	System Centre of Gravity		m
mass	System Mass		kg
profile	System Profile
surface_roughness	System Surface Roughness		m
yaw	Device Heading Angle Span		deg
prescribed_footprint_radius	Footprint Radius		m
footprint_corner_coords	Device Footprint Coordinates		m
installation_depth_max	Maximum Installation Water Depth		m
installation_depth_min	Minimum Installation Water Depth		m
minimum_distance_x	Minimum distance between devices in x direction		m
minimum_distance_y	Minimum distance between devices in y direction		m
prescribed_foundation_system	Preferred Foundation Type
foundation_locations	Device Foundation Locations		m
rated_power	Device Rated Power		MW
rated_voltage_u0	Device Rated Voltage (U0)		V
connector_type	Connector type for device
constant_power_factor	Device Constant Power Factor
variable_power_factor	Device Variable Power Factor
assembly_duration	Device Assembly Duration		hours
connect_duration	Device Connect Duration		hours
disconnect_duration	Device Disconnect Duration		hours
load_out_method	Device Load Out Method
transportation_method	Device Transportation Method
bollard_pull	Device Towing Bollard Pull		tonnes
two_stage_assembly	Two Stage Assembly
cost	Device Cost		Euro

---

Table: project.device_tidal

Approximate dump path: device#\device_tidal.*

Linked to: project.device

Column	Variable Name	Label	Unit
id
cut_in_velocity	Tidal Turbine Cut-In Velocity		m/s
cut_out_velocity	Tidal Turbine Cut-Out Velocity		m/s
hub_height	Tidal Device Hub Height		m
turbine_diameter	Turbine Rotor Diameter		m
two_ways_flow	Bi-directional Turbine Boolean
turbine_interdistance	Interdistance Between Turbines		m

---

Table: project.device_tidal_power_performance

Approximate dump path: device#\device_tidal_power_performance.*

Linked to: project.device

Column	Variable Name	Label	Unit
id
velocity	Turbine Performance Curves	Velocity	m/s
thrust_coefficient	Turbine Performance Curves	Coefficient of Thrust
power_coefficient	Turbine Performance Curves	Coefficient of Power

---

Table: project.device_wave

Approximate dump path: device#\device_wave.*

Linked to: project.device

Column	Variable Name	Label	Unit
id
wave_data_directory	Wave Data Directory

---

Table: project.lease_area

Approximate dump path: site#\lease_area.*

Linked to: project.site

Column	Variable Name	Label	Unit
id
blockage_ratio	Site Blockage Ratio
tidal_occurrence_point	Tidal Occurrence Extraction Point
wave_spectrum_type	Wave Spectrum
wave_spectrum_gamma	Peak factor for Wave Spectrum
wave_spectrum_spreading_parameter	Spreading Parameter for Wave Spectrum
surface_current_flow_velocity	Maximum Tidal Stream Current Velocity in Lease Area		m/s
current_flow_direction	Maximum Surface Current Direction		degrees
moor_found_current_profile	Vertical Current Profile
significant_wave_height	Maximum Significant Wave Height		m
peak_wave_period	Maximum Peak Wave Period		s
predominant_wave_direction	Predominant Wave Direction		degrees
jonswap_gamma	Maximum JONSWAP gamma
mean_wind_speed	Mean Wind Velocity		m/s
predominant_wind_direction	Predominant Mean Wind Direction		degrees
max_wind_gust_speed	Maximum Gust Wind Velocity		m/s
wind_gust_direction	Predominant Direction of Max Gust		degrees
water_level_max	Maximum Water Level		m
water_level_min	Minimum Water Level		m
soil_sensitivity	Soil Sensitivity
has_helipad	Array Helideck

---

Table: project.site

Approximate dump path: site.*

Column	Variable Name	Label	Unit
id	All Available Sites	id
site_name	All Available Sites	site_name
	All Landing Points
	All Lease Boundaries
	All Site Boundaries
	All Cable Corridor Boundaries
lease_area_proj4_string	All Available Sites	lease_area_proj4_string
site_boundary	All Site Boundaries
lease_boundary	All Lease Boundaries
corridor_boundary	All Cable Corridor Boundaries
cable_landing_location	All Landing Points

---

Table: project.sub_systems

Approximate dump path: device#\sub_systems.*

Linked to: project.device

Column	Variable Name	Label	Unit
id
sub_system	Device Sub-System Costs
	Device Access Requirements	Sub-System
	Control Sub-System On-Site Maintenance Requirements	Sub-System
	Device On-Site Maintenance Requirements	Sub-System
	Device Replacement Requirements	Sub-System
	Device On-Site Maintenance Parts Data	Sub-System
	Control Sub-System Inspections Requirements	Sub-System
	Device Sub-System Installation Specification	Sub-System
	Device Control System Installation Specification	Sub-System
	Control Sub-System Costs
	Control Sub-System Replacement Requirements	Sub-System
	Device Sub-System Failure Rates
	Control Sub-System Access Requirements	Sub-System
	Device Inspections Requirements	Sub-System
	Device Operation Weightings	Sub-System
	Control Sub-System Operation Weightings	Sub-System
	Control Sub-System Failure Rates
	Control Sub-System On-Site Maintenance Parts Data	Sub-System

---

Table: project.sub_systems_access

Approximate dump path: device#\sub_systems\sub_systems_access.*

Linked to: project.sub_systems

Column	Variable Name	Label	Unit
id
fk_sub_system_id
operation_duration	Device Access Requirements	Operation Duration	hours
	Control Sub-System Access Requirements	Operation Duration	hours
max_hs	Device Access Requirements	Max Hs	m
	Control Sub-System Access Requirements	Max Hs	m
max_tp	Device Access Requirements	Max Tp	s
	Control Sub-System Access Requirements	Max Tp	s
max_ws	Device Access Requirements	Max Wind Velocity	m/s
	Control Sub-System Access Requirements	Max Wind Velocity	m/s
max_cs	Device Access Requirements	Max Current Velocity	m/s
	Control Sub-System Access Requirements	Max Current Velocity	m/s

---

Table: project.sub_systems_economic

Approximate dump path: device#\sub_systems\sub_systems_economic.*

Linked to: project.sub_systems

Column	Variable Name	Label	Unit
id
fk_sub_system_id
cost	Device Sub-System Costs		Euro
	Control Sub-System Costs		Euro
failure_rate	Device Sub-System Failure Rates		Failures per 10^{6} hours
	Control Sub-System Failure Rates		Failures per 10^{6} hours

---

Table: project.sub_systems_inspection

Approximate dump path: device#\sub_systems\sub_systems_inspection.*

Linked to: project.sub_systems

Column	Variable Name	Label	Unit
id
fk_sub_system_id
operation_duration	Device Inspections Requirements	Operation Duration	hours
	Control Sub-System Inspections Requirements	Operation Duration	hours
crew_lead_time	Device Inspections Requirements	Crew Preparation Delay	hours
	Control Sub-System Inspections Requirements	Crew Preparation Delay	hours
other_lead_time	Device Inspections Requirements	Other Delay	hours
	Control Sub-System Inspections Requirements	Other Delay	hours
n_specialists	Device Inspections Requirements	Specialists Required
	Control Sub-System Inspections Requirements	Specialists Required
n_technicians	Device Inspections Requirements	Technicians Required
	Control Sub-System Inspections Requirements	Technicians Required
max_hs	Device Inspections Requirements	Max Hs	m
	Control Sub-System Inspections Requirements	Max Hs	m
max_tp	Device Inspections Requirements	Max Tp	s
	Control Sub-System Inspections Requirements	Max Tp	s
max_ws	Device Inspections Requirements	Max Wind Velocity	m/s
	Control Sub-System Inspections Requirements	Max Wind Velocity	m/s
max_cs	Device Inspections Requirements	Max Current Velocity	m/s
	Control Sub-System Inspections Requirements	Max Current Velocity	m/s

---

Table: project.sub_systems_install

Approximate dump path: device#\sub_systems\sub_systems_install.*

Linked to: project.sub_systems

Column	Variable Name	Label	Unit
id
fk_sub_system_id
length	Device Sub-System Installation Specification	Length	m
	Device Control System Installation Specification	Length	m
width	Device Control System Installation Specification	Width	m
	Device Sub-System Installation Specification	Width	m
height	Device Sub-System Installation Specification	Height	m
	Device Control System Installation Specification	Height	m
dry_mass	Device Sub-System Installation Specification	Dry Mass	kg
	Device Control System Installation Specification	Dry Mass	kg
max_hs	Device Sub-System Installation Specification	Max Hs	m
	Device Control System Installation Specification	Max Hs	m
max_tp	Device Sub-System Installation Specification	Max Tp	s
	Device Control System Installation Specification	Max Tp	s
max_ws	Device Sub-System Installation Specification	Max Wind Velocity	m/s
	Device Control System Installation Specification	Max Wind Velocity	m/s
max_cs	Device Sub-System Installation Specification	Max Current Velocity	m/s
	Device Control System Installation Specification	Max Current Velocity	m/s

---

Table: project.sub_systems_maintenance

Approximate dump path: device#\sub_systems\sub_systems_maintenance.*

Linked to: project.sub_systems

Column	Variable Name	Label	Unit
id
fk_sub_system_id
operation_duration	Device On-Site Maintenance Requirements	Operation Duration	hours
	Control Sub-System On-Site Maintenance Requirements	Operation Duration	hours
interruptible	Device On-Site Maintenance Requirements	Interruptable
	Control Sub-System On-Site Maintenance Requirements	Interruptable
parts_length	Device On-Site Maintenance Parts Data	Spare Parts Max Length	m
	Control Sub-System On-Site Maintenance Parts Data	Spare Parts Max Length	m
parts_width	Device On-Site Maintenance Parts Data	Spare Parts Max Width	m
	Control Sub-System On-Site Maintenance Parts Data	Spare Parts Max Width	m
parts_height	Device On-Site Maintenance Parts Data	Spare Parts Max Height	m
	Control Sub-System On-Site Maintenance Parts Data	Spare Parts Max Height	m
parts_dry_mass	Device On-Site Maintenance Parts Data	Spare Parts Mass	kg
	Control Sub-System On-Site Maintenance Parts Data	Spare Parts Mass	kg
assembly_lead_time	Device On-Site Maintenance Requirements	Spare Parts Preparation Delay	hours
	Control Sub-System On-Site Maintenance Requirements	Spare Parts Preparation Delay	hours
crew_lead_time	Device On-Site Maintenance Requirements	Crew Preparation Delay	hours
	Control Sub-System On-Site Maintenance Requirements	Crew Preparation Delay	hours
other_lead_time	Device On-Site Maintenance Requirements	Other Delay	hours
	Control Sub-System On-Site Maintenance Requirements	Other Delay	hours
n_specialists	Device On-Site Maintenance Requirements	Specialists Required
	Control Sub-System On-Site Maintenance Requirements	Specialists Required
n_technicians	Device On-Site Maintenance Requirements	Technicians Required
	Control Sub-System On-Site Maintenance Requirements	Technicians Required
max_hs	Control Sub-System On-Site Maintenance Requirements	Max Hs	m
	Device On-Site Maintenance Requirements	Max Hs	m
max_tp	Control Sub-System On-Site Maintenance Requirements	Max Tp	s
	Device On-Site Maintenance Requirements	Max Tp	s
max_ws	Control Sub-System On-Site Maintenance Requirements	Max Wind Velocity	m/s
	Device On-Site Maintenance Requirements	Max Wind Velocity	m/s
max_cs	Control Sub-System On-Site Maintenance Requirements	Max Current Velocity	m/s
	Device On-Site Maintenance Requirements	Max Current Velocity	m/s

---

Table: project.sub_systems_operation_weightings

Approximate dump path: device#\sub_systems\sub_systems_operation_weightings.*

Linked to: project.sub_systems

Column	Variable Name	Label	Unit
id
fk_sub_system_id
maintenance	Device Operation Weightings	On-Site Maintenance
	Control Sub-System Operation Weightings	On-Site Maintenance
replacement	Device Operation Weightings	Replacement
	Control Sub-System Operation Weightings	Replacement
inspection	Device Operation Weightings	Inspections
	Control Sub-System Operation Weightings	Inspections

---

Table: project.sub_systems_replace

Approximate dump path: device#\sub_systems\sub_systems_replace.*

Linked to: project.sub_systems

Column	Variable Name	Label	Unit
id
fk_sub_system_id
operation_duration	Device Replacement Requirements	Operation Duration	hours
	Control Sub-System Replacement Requirements	Operation Duration	hours
interruptible	Device Replacement Requirements	Interruptable
	Control Sub-System Replacement Requirements	Interruptable
assembly_lead_time	Device Replacement Requirements	Spare Parts Preparation Delay	hours
	Control Sub-System Replacement Requirements	Spare Parts Preparation Delay	hours
crew_lead_time	Device Replacement Requirements	Crew Preparation Delay	hours
	Control Sub-System Replacement Requirements	Crew Preparation Delay	hours
other_lead_time	Device Replacement Requirements	Other Delay	hours
	Control Sub-System Replacement Requirements	Other Delay	hours
n_specialists	Device Replacement Requirements	Specialists Required
	Control Sub-System Replacement Requirements	Specialists Required
n_technicians	Device Replacement Requirements	Technicians Required
	Control Sub-System Replacement Requirements	Technicians Required

---

Table: project.time_series_energy_tidal

Approximate dump path: site#\bathymetry\time_series_energy_tidal.*

Linked to: project.bathymetry

See Environmental Data

Column	Variable Name	Label	Unit
id
fk_bathymetry_id
measure_date	Tidal Time Series
measure_time	Tidal Time Series
u	Tidal Time Series		m/s
v	Tidal Time Series		m/s
turbulence_intensity	Tidal Time Series
ssh	Tidal Time Series		m

---

Table: project.time_series_energy_wave

Approximate dump path: site#\time_series_energy_wave.*

Linked to: project.site

Column	Variable Name	Label	Unit
id
measure_date	Wave Time Series
measure_time	Wave Time Series
height	Wave Time Series	Hm0	m
te	Wave Time Series	Te	s
direction	Wave Time Series	Dir	deg

---

Table: project.time_series_om_tidal

Approximate dump path: site#\time_series_om_tidal.*

Linked to: project.site

Column	Variable Name	Label	Unit
id
measure_date	Tidal Current Time Series
measure_time	Tidal Current Time Series
current_speed	Tidal Current Time Series	Velocity	m/s

---

Table: project.time_series_om_wave

Approximate dump path: site#\time_series_om_wave.*

Linked to: project.site

Column	Variable Name	Label	Unit
id
measure_date	Wave Time Series (Installation)
measure_time	Wave Time Series (Installation)
period_tp	Wave Time Series (Installation)	Tp	s
height_hs	Wave Time Series (Installation)	Hs	m

---

Table: project.time_series_om_wind

Approximate dump path: site#\time_series_om_wind.*

Linked to: project.site

Column	Variable Name	Label	Unit
id
measure_date	Wind Speed Time Series
measure_time	Wind Speed Time Series
wind_speed	Wind Speed Time Series	Velocity	m/s

6.4.2. Reference Schema

Table: reference.component

Approximate dump path: other\component.*

Column	Variable Name	Label	Unit
id	Collection Point Data	Key Identifier
	Mooring Forerunner Assembly Critical Failure Rates	Key Identifier
	Mooring Swivel Non-Critical Failure Rates	Key Identifier
	Wet Mate Connector Non-Critical Failure Rates	Key Identifier
	Mooring Forerunner Assembly Data	Key Identifier
	Foundation Drag Anchor Critical Failure Rates	Key Identifier
	Power Transformer Data	Key Identifier
	Foundation Pile Critical Failure Rates	Key Identifier
	Static Cable Data	Key Identifier
	Mooring Forerunner Assembly Non-Critical Failure Rates	Key Identifier
	Foundation Pile Data	Key Identifier
	Mooring Chain Non-Critical Failure Rates	Key Identifier
	Wet Mate Connector Critical Failure Rates	Key Identifier
	Dry Mate Connector Non-Critical Failure Rates	Key Identifier
	Collection Points Foundation Locations
	Mooring Shackle Data	Key Identifier
	Dynamic Cable Data	Key Identifier
	Collections Points Centre of Gravity
	Collection Points Non-Critical Failure Rates	Key Identifier
	Dry Mate Connector Data	Key Identifier
	Foundation Drag Anchor Soft Coefficients	Key Identifier
	Mooring Rope Critical Failure Rates	Key Identifier
	Wet Mate Connector Data	Key Identifier
	Dynamic Cable Non-Critical Failure Rates	Key Identifier
	Foundation Drag Anchor Non-Critical Failure Rates	Key Identifier
	Foundation Drag Anchor Sand Coefficients	Key Identifier
	Mooring shackle Non-Critical Failure Rates	Key Identifier
	Mooring Swivel Critical Failure Rates	Key Identifier
	Mooring Chain Critical Failure Rates	Key Identifier
	Mooring Rope Non-Critical Failure Rates	Key Identifier
	Mooring Rope Data	Key Identifier
	Mooring Swivel Data	Key Identifier
	Mooring Rope Axial Stiffness Data
	Static Cable Critical Failure Rates	Key Identifier
	Dry Mate Connector Critical Failure Rates	Key Identifier
	Transformers Critical Failure Rates	Key Identifier
	Transformers Non-Critical Failure Rates	Key Identifier
	Mooring Shackle Critical Failure Rates	Key Identifier
	Dynamic Cable Critical Failure Rates	Key Identifier
	Collection Points Critical Failure Rates	Key Identifier
	Foundation Drag Anchor Data	Key Identifier
	Mooring Chain Data	Key Identifier
	Foundation Pile Non-Critical Failure Rates	Key Identifier
	Static Cable Non-Critical Failure Rates	Key Identifier
description	Collection Point Data	Name
	Mooring Forerunner Assembly Data	Name
	Static Cable Data	Name
	Foundation Pile Data	Name
	Power Transformer Data	Name
	Dynamic Cable Data	Name
	Mooring Shackle Data	Name
	Foundation Drag Anchor Data	Name
	Dry Mate Connector Data	Name
	Wet Mate Connector Data	Name
	Mooring Rope Data	Name
	Mooring Swivel Data	Name
	Mooring Chain Data	Name

---

Table: reference.component_anchor

Approximate dump path: other\component\component_discrete\component_anchor.*

Linked to: reference.component_discrete; reference.component_type

Column	Variable Name	Label	Unit
id
fk_component_discrete_id
fk_component_type_id
connecting_size	Foundation Drag Anchor Data	Connecting Size	m
minimum_breaking_load	Foundation Drag Anchor Data	Min Break Load	N
axial_stiffness	Foundation Drag Anchor Data	Axial Stiffness	N/m
soft_holding_cap_coef_1	Foundation Drag Anchor Soft Coefficients	Holding Capacity Coefficient 1
soft_holding_cap_coef_2	Foundation Drag Anchor Soft Coefficients	Holding Capacity Coefficient 2
soft_penetration_coef_1	Foundation Drag Anchor Soft Coefficients	Penetration Coefficient 1
soft_penetration_coef_2	Foundation Drag Anchor Soft Coefficients	Penetration Coefficient 2
sand_holding_cap_coef_1	Foundation Drag Anchor Sand Coefficients	Holding Capacity Coefficient 1
sand_holding_cap_coef_2	Foundation Drag Anchor Sand Coefficients	Holding Capacity Coefficient 2
sand_penetration_coef_1	Foundation Drag Anchor Sand Coefficients	Penetration Coefficient 1
sand_penetration_coef_2	Foundation Drag Anchor Sand Coefficients	Penetration Coefficient 2

---

Table: reference.component_cable

Approximate dump path: other\component\component_continuous\component_cable.*

Linked to: reference.component_continuous; reference.component_type

Column	Variable Name	Label	Unit
id
fk_component_continuous_id
fk_component_type_id
minimum_breaking_load	Static Cable Data	Min Break Load	N
	Dynamic Cable Data	Min Break Load	N
minimum_bend_radius	Static Cable Data	Min Bend Radius	m
	Dynamic Cable Data	Min Bend Radius	m
number_conductors	Static Cable Data	Number of Conductors
	Dynamic Cable Data	Number of Conductors
number_fibre_channels	Static Cable Data	Number of Fibre Optic Channels
	Dynamic Cable Data	Number of Fibre Optic Channels
resistance_dc_20	Static Cable Data	DC Resistance	Ohm/km
	Dynamic Cable Data	DC Resistance	Ohm/km
resistance_ac_90	Static Cable Data	AC Resistance	Ohm/km
	Dynamic Cable Data	AC Resistance	Ohm/km
inductive_reactance	Static Cable Data	Inductive Reactance	Ohm/km
	Dynamic Cable Data	Inductive Reactance	Ohm/km
capacitance	Static Cable Data	Capacitance	uF/km
	Dynamic Cable Data	Capacitance	uF/km
rated_current_air	Static Cable Data	Rated Current in Air	A
	Dynamic Cable Data	Rated Current in Air	A
rated_current_buried	Static Cable Data	Rated Current if Buried	A
	Dynamic Cable Data	Rated Current if Buried	A
rated_current_jtube	Static Cable Data	Rated Current in J Tube	A
	Dynamic Cable Data	Rated Current in J Tube	A
rated_voltage_u0	Static Cable Data	Rated Voltage (U0)	V
	Dynamic Cable Data	Rated Voltage (U0)	V
operational_temp_max	Static Cable Data	Max Temperature	C
	Dynamic Cable Data	Max Temperature	C

---

Table: reference.component_collection_point

Approximate dump path: other\component\component_discrete\component_collection_point.*

Linked to: reference.component_type; reference.component_discrete

Column	Variable Name	Label	Unit
id
fk_component_discrete_id
fk_component_type_id
wet_frontal_area	Collection Point Data	Wet Frontal Area	m^{2}
dry_frontal_area	Collection Point Data	Dry Frontal Area	m^{2}
wet_beam_area	Collection Point Data	Wet Beam Area	m^{2}
dry_beam_area	Collection Point Data	Dry Beam Area	m^{2}
maximum_water_depth	Collection Point Data	Max Water Depth	m
orientation_angle	Collection Point Data	Orientation Angle	deg
input_lines	Collection Point Data	Input Lines
output_lines	Collection Point Data	Output Lines
input_connector_type	Collection Point Data	Input Connector Type
output_connector_type	Collection Point Data	Output Connector Type
number_fibre_channels	Collection Point Data	Number of Fibre Optic Channels
voltage_primary_winding	Collection Point Data	Primary Winding Voltage	V
voltage_secondary_winding	Collection Point Data	Secondary Winding Voltage	V
rated_operating_current	Collection Point Data	Rated Current	A
operational_temp_min	Collection Point Data	Min Temperature	C
operational_temp_max	Collection Point Data	Max Temperature	C
foundation_locations	Collection Points Foundation Locations	Key Identifier
centre_of_gravity	Collections Points Centre of Gravity	Key Identifier	m, m, m

---

Table: reference.component_connector

Approximate dump path: other\component\component_discrete\component_connector.*

Linked to: reference.component_type; reference.component_discrete

Column	Variable Name	Label	Unit
id
fk_component_discrete_id
fk_component_type_id
maximum_water_depth	Wet Mate Connector Data	Max Water Depth	m
	Dry Mate Connector Data	Max Water Depth	m
number_contacts	Wet Mate Connector Data	Number Of Contacts
	Dry Mate Connector Data	Number Of Contacts
number_fibre_channels	Wet Mate Connector Data	Number of Fibre Optic Channels
	Dry Mate Connector Data	Number of Fibre Optic Channels
mating_force	Wet Mate Connector Data	Mating Force	N
	Dry Mate Connector Data	Mating Force	N
demating_force	Wet Mate Connector Data	Demating Force	N
	Dry Mate Connector Data	Demating Force	N
rated_voltage_u0	Wet Mate Connector Data	Rated Voltage (U0)	V
	Dry Mate Connector Data	Rated Voltage (U0)	V
rated_current	Wet Mate Connector Data	Rated Current	A
	Dry Mate Connector Data	Rated Current	A
cable_area_min	Wet Mate Connector Data	Min Cable Area	mm^2
	Dry Mate Connector Data	Min Cable Area	mm^2
cable_area_max	Wet Mate Connector Data	Max Cable Area	mm^2
	Dry Mate Connector Data	Max Cable Area	mm^2
operational_temp_min	Wet Mate Connector Data	Min Temperature	C
	Dry Mate Connector Data	Min Temperature	C
operational_temp_max	Wet Mate Connector Data	Max Temperature	C
	Dry Mate Connector Data	Max Temperature	C

---

Table: reference.component_continuous

Approximate dump path: other\component\component_continuous.*

Linked to: reference.component

Column	Variable Name	Label	Unit
id
fk_component_id
diameter	Static Cable Data	Diameter	m
	Foundation Pile Data	Diameter	m
	Dynamic Cable Data	Diameter	m
	Mooring Forerunner Assembly Data	Diameter	m
	Mooring Chain Data	Diameter	m
	Mooring Rope Data	Diameter	m
dry_mass_per_unit_length	Foundation Pile Data	Dry Mass per Unit Length	kg/m
	Static Cable Data	Dry Mass per Unit Length	kg/m
	Dynamic Cable Data	Dry Mass per Unit Length	kg/m
	Mooring Forerunner Assembly Data	Dry Mass per Unit Length	kg/m
	Mooring Rope Data	Dry Mass per Unit Length	kg/m
	Mooring Chain Data	Dry Mass per Unit Length	kg/m
wet_mass_per_unit_length	Foundation Pile Data	Wet Mass per Unit Length	kg/m
	Static Cable Data	Wet Mass per Unit Length	kg/m
	Dynamic Cable Data	Wet Mass per Unit Length	kg/m
	Mooring Forerunner Assembly Data	Wet Mass per Unit Length	kg/m
	Mooring Rope Data	Wet Mass per Unit Length	kg/m
	Mooring Chain Data	Wet Mass per Unit Length	kg/m
cost_per_unit_length	Foundation Pile Data	Cost per Unit Length	Euro/m
	Static Cable Data	Cost per Unit Length	Euro/m
	Dynamic Cable Data	Cost per Unit Length	Euro/m
	Mooring Forerunner Assembly Data	Cost per Unit Length	Euro/m
	Mooring Rope Data	Cost per Unit Length	Euro/m
	Mooring Chain Data	Cost per Unit Length	Euro/m

---

Table: reference.component_discrete

Approximate dump path: other\component\component_discrete.*

Linked to: reference.component

Column	Variable Name	Label	Unit
id
fk_component_id
length	Dry Mate Connector Data	Depth	m
	Power Transformer Data	Depth	m
	Mooring Swivel Data	Depth	m
	Wet Mate Connector Data	Depth	m
	Foundation Drag Anchor Data	Depth	m
	Mooring Shackle Data	Depth	m
	Collection Point Data	Depth	m
width	Wet Mate Connector Data	Width	m
	Dry Mate Connector Data	Width	m
	Mooring Swivel Data	Width	m
	Collection Point Data	Width	m
	Power Transformer Data	Width	m
	Mooring Shackle Data	Width	m
	Foundation Drag Anchor Data	Width	m
height	Dry Mate Connector Data	Height	m
	Mooring Swivel Data	Height	m
	Collection Point Data	Height	m
	Wet Mate Connector Data	Height	m
	Power Transformer Data	Height	m
	Mooring Shackle Data	Height	m
	Foundation Drag Anchor Data	Height	m
dry_mass	Dry Mate Connector Data	Dry Mass	kg
	Mooring Swivel Data	Dry Unit Mass	kg
	Collection Point Data	Dry Mass	kg
	Wet Mate Connector Data	Dry Mass	kg
	Power Transformer Data	Dry Mass	kg
	Mooring Shackle Data	Dry Unit Mass	kg
	Foundation Drag Anchor Data	Dry Unit Mass	kg
wet_mass	Wet Mate Connector Data	Wet Mass	kg
	Dry Mate Connector Data	Wet Mass	kg
	Power Transformer Data	Wet Mass	kg
	Mooring Swivel Data	Wet Unit Mass	kg
	Collection Point Data	Wet Mass	kg
	Mooring Shackle Data	Wet Unit Mass	kg
	Foundation Drag Anchor Data	Wet Unit Mass	kg
cost	Wet Mate Connector Data	Cost	Euro
	Dry Mate Connector Data	Cost	Euro
	Mooring Swivel Data	Cost	Euro
	Collection Point Data	Cost	Euro
	Power Transformer Data	Cost	Euro
	Mooring Shackle Data	Cost	Euro
	Foundation Drag Anchor Data	Cost	Euro

---

Table: reference.component_mooring_continuous

Approximate dump path: other\component\component_continuous\component_mooring_continuous.*

Linked to: reference.component_continuous; reference.component_type

Column	Variable Name	Label	Unit
id
fk_component_continuous_id
fk_component_type_id
connecting_length	Mooring Forerunner Assembly Data	Connecting Length	m
	Mooring Chain Data	Connecting Length	m
minimum_breaking_load	Mooring Chain Data	Min Break Load	N
	Mooring Forerunner Assembly Data	Min Break Load	N
axial_stiffness	Mooring Forerunner Assembly Data	Axial Stiffness	N/m
	Mooring Chain Data	Axial Stiffness	N/m

---

Table: reference.component_mooring_discrete

Approximate dump path: other\component\component_discrete\component_mooring_discrete.*

Linked to: reference.component_discrete; reference.component_type

Column	Variable Name	Label	Unit
id
fk_component_discrete_id
fk_component_type_id
nominal_diameter	Mooring Swivel Data	Nominal Diameter	m
	Mooring Shackle Data	Nominal Diameter	m
connecting_length	Mooring Shackle Data	Connecting Length	m
	Mooring Swivel Data	Connecting Length	m
minimum_breaking_load	Mooring Swivel Data	Min Break Load	N
	Mooring Shackle Data	Min Break Load	N
axial_stiffness	Mooring Shackle Data	Axial Stiffness	N/m
	Mooring Swivel Data	Axial Stiffness	N/m

---

Table: reference.component_pile

Approximate dump path: other\component\component_continuous\component_pile.*

Linked to: reference.component_type; reference.component_continuous

Column	Variable Name	Label	Unit
id
fk_component_continuous_id
fk_component_type_id
wall_thickness	Foundation Pile Data	Wall Thickness	m
yield_stress	Foundation Pile Data	Yield Stress	N/m^{2}
youngs_modulus	Foundation Pile Data	Youngs Modulus	N/m^{2}

---

Table: reference.component_rope

Approximate dump path: other\component\component_continuous\component_rope.*

Linked to: reference.component_continuous; reference.component_type

Column	Variable Name	Label	Unit
id
fk_component_continuous_id
fk_component_type_id
material	Mooring Rope Data	Material
minimum_breaking_load	Mooring Rope Data	Min Break Load	N
rope_stiffness_curve	Mooring Rope Axial Stiffness Data	% of Min Breaking Load	N, N/m

---

Table: reference.component_shared

Approximate dump path: other\component\component_shared.*

Linked to: reference.component

Column	Variable Name	Label	Unit
id
fk_component_id
preparation_person_hours
inspection_person_hours
maintenance_person_hours
replacement_person_hours
ncfr_lower_bound	Collection Points Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Dynamic Cable Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Mooring Forerunner Assembly Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Foundation Drag Anchor Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Mooring Swivel Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Mooring shackle Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Mooring Chain Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Static Cable Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Wet Mate Connector Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Transformers Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Foundation Pile Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Mooring Rope Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Dry Mate Connector Non-Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
ncfr_mean	Collection Points Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Dynamic Cable Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Mooring Forerunner Assembly Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Foundation Drag Anchor Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Mooring Swivel Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Mooring shackle Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Mooring Chain Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Static Cable Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Wet Mate Connector Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Transformers Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Foundation Pile Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Mooring Rope Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
	Dry Mate Connector Non-Critical Failure Rates	Mean	Failures per 10^{6} hours
ncfr_upper_bound	Collection Points Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Dynamic Cable Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Mooring Forerunner Assembly Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Foundation Drag Anchor Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Mooring Swivel Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Mooring shackle Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Mooring Chain Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Static Cable Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Wet Mate Connector Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Transformers Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Foundation Pile Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Mooring Rope Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Dry Mate Connector Non-Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
cfr_lower_bound	Foundation Pile Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Static Cable Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Dry Mate Connector Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Mooring Rope Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Mooring Forerunner Assembly Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Mooring Chain Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Wet Mate Connector Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Collection Points Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Transformers Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Mooring Swivel Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Dynamic Cable Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Foundation Drag Anchor Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
	Mooring Shackle Critical Failure Rates	Lower Bound	Failures per 10^{6} hours
cfr_mean	Foundation Pile Critical Failure Rates	Mean	Failures per 10^{6} hours
	Static Cable Critical Failure Rates	Mean	Failures per 10^{6} hours
	Dry Mate Connector Critical Failure Rates	Mean	Failures per 10^{6} hours
	Mooring Rope Critical Failure Rates	Mean	Failures per 10^{6} hours
	Mooring Forerunner Assembly Critical Failure Rates	Mean	Failures per 10^{6} hours
	Mooring Chain Critical Failure Rates	Mean	Failures per 10^{6} hours
	Wet Mate Connector Critical Failure Rates	Mean	Failures per 10^{6} hours
	Collection Points Critical Failure Rates	Mean	Failures per 10^{6} hours
	Transformers Critical Failure Rates	Mean	Failures per 10^{6} hours
	Mooring Swivel Critical Failure Rates	Mean	Failures per 10^{6} hours
	Dynamic Cable Critical Failure Rates	Mean	Failures per 10^{6} hours
	Foundation Drag Anchor Critical Failure Rates	Mean	Failures per 10^{6} hours
	Mooring Shackle Critical Failure Rates	Mean	Failures per 10^{6} hours
cfr_upper_bound	Foundation Pile Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Static Cable Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Dry Mate Connector Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Mooring Rope Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Mooring Forerunner Assembly Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Mooring Chain Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Wet Mate Connector Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Collection Points Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Transformers Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Mooring Swivel Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Dynamic Cable Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Foundation Drag Anchor Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
	Mooring Shackle Critical Failure Rates	Upper Bound	Failures per 10^{6} hours
environmental_impact	Wet Mate Connector Data	Environmental Impact
	Dry Mate Connector Data	Environmental Impact
	Static Cable Data	Environmental Impact
	Mooring Chain Data	Environmental Impact
	Mooring Swivel Data	Environmental Impact
	Collection Point Data	Environmental Impact
	Foundation Pile Data	Environmental Impact
	Power Transformer Data	Environmental Impact
	Dynamic Cable Data	Environmental Impact
	Foundation Drag Anchor Data	Environmental Impact
	Mooring Forerunner Assembly Data	Environmental Impact
	Mooring Shackle Data	Environmental Impact
	Mooring Rope Data	Environmental Impact

---

Table: reference.component_transformer

Approximate dump path: other\component\component_discrete\component_transformer.*

Linked to: reference.component_type; reference.component_discrete

Column	Variable Name	Label	Unit
id
fk_component_discrete_id
fk_component_type_id
maximum_water_depth	Power Transformer Data	Max Water Depth	m
power_rating	Power Transformer Data	Power Rating	VA
impedance	Power Transformer Data	Impedance	pc
windings	Power Transformer Data	Number of Windings
voltage_primary_winding	Power Transformer Data	Primary Winding Voltage	V
voltage_secondary_winding	Power Transformer Data	Secondary Winding Voltage	V
voltage_tertiary_winding	Power Transformer Data	Tertiary Winding Voltage	V
operational_temp_min	Power Transformer Data	Min Temperature	C
operational_temp_max	Power Transformer Data	Max Temperature	C

---

Table: reference.component_type

Approximate dump path: component_type.*

Column	Variable Name	Label	Unit
id
description

---

Table: reference.constants

Approximate dump path: other\constants.*

Column	Variable Name	Label	Unit
lock
gravity	Gravitational Acceleration		m/s^{2}
sea_water_density	Sea Water Density		kg/m^{3}
air_density	Air Density		kg/m^{3}
steel_density	Steel Density		kg/m^{3}
concrete_density	Concrete Density		kg/m^{3}
grout_density	Grout Density		kg/m^{3}
grout_strength	Grout Compressive Strength		psi

---

Table: reference.equipment_cable_burial

Approximate dump path: other\equipment\equipment_cable_burial.*

Column	Variable Name	Label	Unit
id
description	Installation Equipment: Cable Burial Data	Name
width	Installation Equipment: Cable Burial Data	Width	m
length	Installation Equipment: Cable Burial Data	Length	m
height	Installation Equipment: Cable Burial Data	Height	m
dry_mass	Installation Equipment: Cable Burial Data	Dry Mass	tonnes
max_operating_depth	Installation Equipment: Cable Burial Data	Max Operating Depth	m
tow_force_required	Installation Equipment: Cable Burial Data	Tow Force Required	tonnes
jetting_capability	Installation Equipment: Cable Burial Data	Jetting Capability
ploughing_capability	Installation Equipment: Cable Burial Data	Ploughing Capability
cutting_capability	Installation Equipment: Cable Burial Data	Cutting Capability
jetting_trench_depth	Installation Equipment: Cable Burial Data	Jetting Trench Depth	m
ploughing_trench_depth	Installation Equipment: Cable Burial Data	Ploughing Trench Depth	m
cutting_trench_depth	Installation Equipment: Cable Burial Data	Cutting Trench Depth	m
max_cable_diameter	Installation Equipment: Cable Burial Data	Max Cable Diameter	mm
min_cable_bend_radius	Installation Equipment: Cable Burial Data	Min Cable Bending Radius	m
additional_equipment_footprint	Installation Equipment: Cable Burial Data	Additional Equipment Footprint	m^{2}
additional_equipment_mass	Installation Equipment: Cable Burial Data	Additional Equipment Mass	tonnes
equipment_day_rate	Installation Equipment: Cable Burial Data	Equipment Day Rate	Euro/day
personnel_day_rate	Installation Equipment: Cable Burial Data	Personnel Day Rate	Euro/day

---

Table: reference.equipment_divers

Approximate dump path: other\equipment\equipment_divers.*

Column	Variable Name	Label	Unit
id
description	Installation Equipment: Divers Data	Name
max_operating_depth	Installation Equipment: Divers Data	Max Operating Depth	m
deployment_eq_footprint	Installation Equipment: Divers Data	Deployment Equipment Footprint	m^{2}
deployment_eq_mass	Installation Equipment: Divers Data	Deployment Equipment Mass	tonnes
total_day_rate	Installation Equipment: Divers Data	Total Day Rate	Euro/day

---

Table: reference.equipment_drilling_rigs

Approximate dump path: other\equipment\equipment_drilling_rigs.*

Column	Variable Name	Label	Unit
id
description	Installation Equipment: Drilling Rigs Data	Name
diameter	Installation Equipment: Drilling Rigs Data	Diameter	m
length	Installation Equipment: Drilling Rigs Data	Length	m
dry_mass	Installation Equipment: Drilling Rigs Data	Dry Mass	tonnes
max_water_depth	Installation Equipment: Drilling Rigs Data	Max Water Depth	m
max_drilling_depth	Installation Equipment: Drilling Rigs Data	Max Drilling Depth	m
drilling_diameter_range	Installation Equipment: Drilling Rigs Data	Drilling Diameter Range	m
additional_equipment_footprint	Installation Equipment: Drilling Rigs Data	Additional Equipment Footprint	m^{2}
additional_equipment_mass	Installation Equipment: Drilling Rigs Data	Additional Equipment Mass	tonnes
equipment_day_rate	Installation Equipment: Drilling Rigs Data	Equipment Day Rate	Euro/day
personnel_day_rate	Installation Equipment: Drilling Rigs Data	Personnel Day Rate	Euro/day

---

Table: reference.equipment_excavating

Approximate dump path: other\equipment\equipment_excavating.*

Column	Variable Name	Label	Unit
id
description	Installation Equipment: Excavating Data	Name
width	Installation Equipment: Excavating Data	Width	m
height	Installation Equipment: Excavating Data	Height	m
dry_mass	Installation Equipment: Excavating Data	Dry Mass	tonnes
depth_rating	Installation Equipment: Excavating Data	Depth Rating	m
equipment_day_rate	Installation Equipment: Excavating Data	Equipment Day Rate	Euro/day
personnel_day_rate	Installation Equipment: Excavating Data	Personnel Day Rate	Euro/day

---

Table: reference.equipment_hammer

Approximate dump path: other\equipment\equipment_hammer.*

Column	Variable Name	Label	Unit
id
description	Installation Equipment: Hammer Data	Name
length	Installation Equipment: Hammer Data	Length	m
dry_mass	Installation Equipment: Hammer Data	Dry Mass	tonnes
depth_rating	Installation Equipment: Hammer Data	Depth Rating	m
min_pile_diameter	Installation Equipment: Hammer Data	Min Pile Diameter	mm
max_pile_diameter	Installation Equipment: Hammer Data	Max Pile Diameter	mm
additional_equipment_footprint	Installation Equipment: Hammer Data	Additional Equipment Footprint	m^{2}
additional_equipment_mass	Installation Equipment: Hammer Data	Additional Equipment Mass	tonnes
equipment_day_rate	Installation Equipment: Hammer Data	Equipment Day Rate	Euro/day
personnel_day_rate	Installation Equipment: Hammer Data	Personnel Day Rate	Euro/day

---

Table: reference.equipment_mattress

Approximate dump path: other\equipment\equipment_mattress.*

Column	Variable Name	Label	Unit
id
description	Installation Equipment: Concrete Mattress Data	Name
width	Installation Equipment: Concrete Mattress Data	Width	m
length	Installation Equipment: Concrete Mattress Data	Length	m
thickness	Installation Equipment: Concrete Mattress Data	Thickness	m
dry_mass	Installation Equipment: Concrete Mattress Data	Dry Mass	tonnes
cost	Installation Equipment: Concrete Mattress Data	Cost	Euro

---

Table: reference.equipment_rock_filter_bags

Approximate dump path: other\equipment\equipment_rock_filter_bags.*

Column	Variable Name	Label	Unit
id
description	Installation Equipment: Rock Bags Data	Name
diameter	Installation Equipment: Rock Bags Data	Diameter	m
height	Installation Equipment: Rock Bags Data	Height	m
dry_mass	Installation Equipment: Rock Bags Data	Dry Mass	tonnes
cost	Installation Equipment: Rock Bags Data	Cost	Euro

---

Table: reference.equipment_rov

Approximate dump path: other\equipment\equipment_rov.*

Column	Variable Name	Label	Unit
id
description	Installation Equipment: ROV Data	Name
rov_class	Installation Equipment: ROV Data	Class
width	Installation Equipment: ROV Data	Width	m
length	Installation Equipment: ROV Data	Length	m
height	Installation Equipment: ROV Data	Height	m
dry_mass	Installation Equipment: ROV Data	Dry Mass	tonnes
depth_rating	Installation Equipment: ROV Data	Depth Rating	m
payload	Installation Equipment: ROV Data	Payload	tonnes
manipulator_grip_force	Installation Equipment: ROV Data	Manipulator Grip Force	N
additional_equipment_footprint	Installation Equipment: ROV Data	Additional Equipment Footprint	m^{2}
additional_equipment_mass	Installation Equipment: ROV Data	Additional Equipment Mass	tonnes
additional_equipment_supervisors	Installation Equipment: ROV Data	Number of Supervisors
additional_equipment_technicians	Installation Equipment: ROV Data	Number of Technicians
equipment_day_rate	Installation Equipment: ROV Data	Equipment Day Rate	Euro/day
supervisor_day_rate	Installation Equipment: ROV Data	Supervisor Day Rate	Euro/day
technician_day_rate	Installation Equipment: ROV Data	Technician Day Rate	Euro/day

---

Table: reference.equipment_soil_lay_rates

Approximate dump path: other\equipment\equipment_soil_lay_rates.*

Column	Variable Name	Label	Unit
equipment_type	Installation Technique Soil Compatibility	Technique
soil_ls	Installation Technique Soil Compatibility	Loose Sand
soil_ms	Installation Technique Soil Compatibility	Medium Sand
soil_ds	Installation Technique Soil Compatibility	Dense Sand
soil_vsc	Installation Technique Soil Compatibility	Very Soft Clay
soil_sc	Installation Technique Soil Compatibility	Soft Clay
soil_fc	Installation Technique Soil Compatibility	Firm Clay
soil_stc	Installation Technique Soil Compatibility	Stiff Clay
soil_hgt	Installation Technique Soil Compatibility	Hard Glacial Till
soil_cm	Installation Technique Soil Compatibility	Cemented
soil_src	Installation Technique Soil Compatibility	Soft Rock Coral
soil_hr	Installation Technique Soil Compatibility	Hard Rock
soil_gc	Installation Technique Soil Compatibility	Gravel Cobble

---

Table: reference.equipment_soil_penet_rates

Approximate dump path: other\equipment\equipment_soil_penet_rates.*

Column	Variable Name	Label	Unit
equipment_type	Installation Equipment: Penetration Rates	Technique
soil_ls	Installation Equipment: Penetration Rates	Loose Sand	m/hour
soil_ms	Installation Equipment: Penetration Rates	Medium Sand	m/hour
soil_ds	Installation Equipment: Penetration Rates	Dense Sand	m/hour
soil_vsc	Installation Equipment: Penetration Rates	Very Soft Clay	m/hour
soil_sc	Installation Equipment: Penetration Rates	Soft Clay	m/hour
soil_fc	Installation Equipment: Penetration Rates	Firm Clay	m/hour
soil_stc	Installation Equipment: Penetration Rates	Stiff Clay	m/hour
soil_hgt	Installation Equipment: Penetration Rates	Hard Glacial Till	m/hour
soil_cm	Installation Equipment: Penetration Rates	Cemented	m/hour
soil_src	Installation Equipment: Penetration Rates	Soft Rock Coral	m/hour
soil_hr	Installation Equipment: Penetration Rates	Hard Rock	m/hour
soil_gc	Installation Equipment: Penetration Rates	Gravel Cobble	m/hour

---

Table: reference.equipment_split_pipe

Approximate dump path: other\equipment\equipment_split_pipe.*

Column	Variable Name	Label	Unit
id
description	Installation Equipment: Split Pipes Data	Name
length	Installation Equipment: Split Pipes Data	Length	mm
cost	Installation Equipment: Split Pipes Data	Cost	Euro

---

Table: reference.equipment_vibro_driver

Approximate dump path: other\equipment\equipment_vibro_driver.*

Column	Variable Name	Label	Unit
id
description	Installation Equipment: Vibro Driver Data	Name
width	Installation Equipment: Vibro Driver Data	Width	m
length	Installation Equipment: Vibro Driver Data	Length	m
height	Installation Equipment: Vibro Driver Data	Height	m
vibro_driver_mass	Installation Equipment: Vibro Driver Data	Vibro Driver Mass	tonnes
clamp_mass	Installation Equipment: Vibro Driver Data	Clamp Mass	tonnes
min_pile_diameter	Installation Equipment: Vibro Driver Data	Min Pile Diameter	mm
max_pile_diameter	Installation Equipment: Vibro Driver Data	Max Pile Diameter	mm
max_pile_mass	Installation Equipment: Vibro Driver Data	Max Pile Mass	tonnes
additional_equipment_footprint	Installation Equipment: Vibro Driver Data	Additional Equipment Footprint	m^{2}
additional_equipment_mass	Installation Equipment: Vibro Driver Data	Additional Equipment Mass	tonnes
equipment_day_rate	Installation Equipment: Vibro Driver Data	Equipment Day Rate	Euro/day
personnel_day_rate	Installation Equipment: Vibro Driver Data	Personnel Day Rate	Euro/day

---

Table: reference.operations_limit_cs

Approximate dump path: other\operations\operations_limit_cs.*

Linked to: reference.operations_type

Column	Variable Name	Label	Unit
id
fk_operations_id
cs_limit	Current Speed Operational Limits	Current Velocity Limit	m/s

---

Table: reference.operations_limit_hs

Approximate dump path: other\operations\operations_limit_hs.*

Linked to: reference.operations_type

Column	Variable Name	Label	Unit
id
fk_operations_id
hs_limit	Wave Height Operational Limits	Hs Limit	m

---

Table: reference.operations_limit_tp

Approximate dump path: other\operations\operations_limit_tp.*

Linked to: reference.operations_type

Column	Variable Name	Label	Unit
id
fk_operations_id
tp_limit	Wave Period Operational Limits	Tp Limit	s

---

Table: reference.operations_limit_ws

Approximate dump path: other\operations\operations_limit_ws.*

Linked to: reference.operations_type

Column	Variable Name	Label	Unit
id
fk_operations_id
ws_limit	Wind Speed Operational Limits	Wind Velocity Limit	m/s

---

Table: reference.operations_type

Approximate dump path: operations_type.*

Column	Variable Name	Label	Unit
id
description	Wave Height Operational Limits	Name
	Wind Speed Operational Limits	Name
	Current Speed Operational Limits	Name
	Wave Period Operational Limits	Name

---

Table: reference.ports

Approximate dump path: other\ports.*

Column	Variable Name	Label	Unit
id
name	Ports Data	Name
	Port Locations
country	Ports Data	Country
type_of_terminal	Ports Data	Type of Terminal
entrance_width	Ports Data	Entrance Width	m
terminal_length	Ports Data	Terminal Length	m
terminal_load_bearing	Ports Data	Terminal Load Bearing	tonnes/m^{2}
terminal_draught	Ports Data	Terminal Draught	m
terminal_area	Ports Data	Terminal Area	m^{2}
max_gantry_crane_lift_capacity	Ports Data	Max Gantry Crane Lift Capacity	tonnes
max_tower_crane_lift_capacity	Ports Data	Max Tower Crane Lift Capacity	tonnes
jacking_capability	Ports Data	Jacking Capability
point_location	Port Locations		degrees

---

Table: reference.ref_current_drag_coef_rect

Approximate dump path: other\constants\ref_current_drag_coef_rect.*

Column	Variable Name	Label	Unit
width_length	Rectangular Section Current Drag Coefficients	Width / Length
thickness_width	Rectangular Section Current Drag Coefficients	Thickness / Width = 0

---

Table: reference.ref_drag_coef_cyl

Approximate dump path: other\constants\ref_drag_coef_cyl.*

Column	Variable Name	Label	Unit
reynolds_number	Cylinder Drag Coefficients	Reynolds Number
smooth	Cylinder Drag Coefficients	Smooth Coefficient
roughness_1e_5	Cylinder Drag Coefficients	Roughness = 1e-5 Coefficient
roughness_1e_2	Cylinder Drag Coefficients	Roughness = 1e-2 Coefficient

---

Table: reference.ref_drift_coef_float_rect

Approximate dump path: other\constants\ref_drift_coef_float_rect.*

Column	Variable Name	Label	Unit
wavenumber_draft	Rectangular Section Drift Coefficients	Wavenumber * Draft
reflection_coefficient	Rectangular Section Drift Coefficients	Reflection Coefficient

---

Table: reference.ref_holding_capacity_factors_plate_anchors

Approximate dump path: other\constants\ref_holding_capacity_factors_plate_anchors.*

Column	Variable Name	Label	Unit
relative_embedment_depth	Drained Soil Holding Capacity Factor	Relative Embedment Depth
drained_friction_angle_20deg	Drained Soil Holding Capacity Factor	Drained Friction Angle = 20 degrees
drained_friction_angle_25deg	Drained Soil Holding Capacity Factor	Drained Friction Angle = 25 degrees
drained_friction_angle_30deg	Drained Soil Holding Capacity Factor	Drained Friction Angle = 30 degrees
drained_friction_angle_35deg	Drained Soil Holding Capacity Factor	Drained Friction Angle = 35 degrees
drained_friction_angle_40deg	Drained Soil Holding Capacity Factor	Drained Friction Angle = 40 degrees

---

Table: reference.ref_line_bcf

Approximate dump path: other\constants\ref_line_bcf.*

Column	Variable Name	Label	Unit
soil_friction_angle	Buried Mooring Line Bearing Capacity Factor	Soil Friction Angle	degrees
bearing_capacity_factor	Buried Mooring Line Bearing Capacity Factor	Bearing Capacity Factor

---

Table: reference.ref_pile_deflection_coefficients

Approximate dump path: other\constants\ref_pile_deflection_coefficients.*

Column	Variable Name	Label	Unit
depth_coefficient	Pile Deflection Coefficients	Depth Coefficient
coefficient_ay	Pile Deflection Coefficients	Ay
coefficient_by	Pile Deflection Coefficients	By

---

Table: reference.ref_pile_limiting_values_noncalcareous

Approximate dump path: other\constants\ref_pile_limiting_values_noncalcareous.*

Column	Variable Name	Label	Unit
soil_friction_angle	Pile Skin Friction and End Bearing Capacity	Soil Friction Angle	degrees
friction_angle_sand_pile	Pile Skin Friction and End Bearing Capacity	Friction Angle Sand-Pile	degrees
bearing_capacity_factor	Pile Skin Friction and End Bearing Capacity	Max Bearing Capacity Factor
max_unit_skin_friction	Pile Skin Friction and End Bearing Capacity	Max Unit Skin Friction	N/m^{2}
max_end_bearing_capacity	Pile Skin Friction and End Bearing Capacity	Max End Bearing Capacity	N/m^{2}

---

Table: reference.ref_pile_moment_coefficient_sam

Approximate dump path: other\constants\ref_pile_moment_coefficient_sam.*

Column	Variable Name	Label	Unit
depth_coefficient	Am Pile Moment Coefficient	Depth Coefficient
pile_length_relative_soil_pile_stiffness_10	Am Pile Moment Coefficient	Pile Length / Relative Soil-Pile Stiffness = 10
pile_length_relative_soil_pile_stiffness_5	Am Pile Moment Coefficient	Pile Length / Relative Soil-Pile Stiffness = 5
pile_length_relative_soil_pile_stiffness_4	Am Pile Moment Coefficient	Pile Length / Relative Soil-Pile Stiffness = 4
pile_length_relative_soil_pile_stiffness_3	Am Pile Moment Coefficient	Pile Length / Relative Soil-Pile Stiffness = 3
pile_length_relative_soil_pile_stiffness_2	Am Pile Moment Coefficient	Pile Length / Relative Soil-Pile Stiffness = 2

---

Table: reference.ref_pile_moment_coefficient_sbm

Approximate dump path: other\constants\ref_pile_moment_coefficient_sbm.*

Column	Variable Name	Label	Unit
depth_coefficient	Bm Pile Moment Coefficient	Depth Coefficient
pile_length_relative_soil_pile_stiffness_10	Bm Pile Moment Coefficient	Pile Length / Relative Soil-Pile Stiffness = 10
pile_length_relative_soil_pile_stiffness_5	Bm Pile Moment Coefficient	Pile Length / Relative Soil-Pile Stiffness = 5
pile_length_relative_soil_pile_stiffness_4	Bm Pile Moment Coefficient	Pile Length / Relative Soil-Pile Stiffness = 4
pile_length_relative_soil_pile_stiffness_3	Bm Pile Moment Coefficient	Pile Length / Relative Soil-Pile Stiffness = 3
pile_length_relative_soil_pile_stiffness_2	Bm Pile Moment Coefficient	Pile Length / Relative Soil-Pile Stiffness = 2

---

Table: reference.ref_rectangular_wave_inertia

Approximate dump path: other\constants\ref_rectangular_wave_inertia.*

Column	Variable Name	Label	Unit
width/length	Rectangular Section Wave Inertia Coefficients	Width / Length
inertia_coefficients	Rectangular Section Wave Inertia Coefficients	Inertia Coefficients

---

Table: reference.ref_subgrade_reaction_coefficient_cohesionless

Approximate dump path: other\constants\ref_subgrade_reaction_coefficient_cohesionless.*

Column	Variable Name	Label	Unit
allowable_deflection_diameter	Cohesionless Soil Coefficient of Subgrade Reaction	Allowable Deflection / Diameter
relative_density_35	Cohesionless Soil Coefficient of Subgrade Reaction	35% Relative Density Coefficient
relative_density_50	Cohesionless Soil Coefficient of Subgrade Reaction	50% Relative Density Coefficient
relative_density_65	Cohesionless Soil Coefficient of Subgrade Reaction	65% Relative Density Coefficient
relative_density_85	Cohesionless Soil Coefficient of Subgrade Reaction	85% Relative Density Coefficient

---

Table: reference.ref_subgrade_reaction_coefficient_k1_cohesive

Approximate dump path: other\constants\ref_subgrade_reaction_coefficient_k1_cohesive.*

Column	Variable Name	Label	Unit
allowable_deflection_diameter	Cohesive Soil Coefficient of Subgrade Reaction	Allowable Deflection / Diameter
softclay	Cohesive Soil Coefficient of Subgrade Reaction	Soft Clay Coefficient
stiffclay	Cohesive Soil Coefficient of Subgrade Reaction	Stiff Clay Coefficient

---

Table: reference.ref_superline_nylon

Approximate dump path: other\constants\ref_superline_nylon.*

Column	Variable Name	Label	Unit
extension
load_mbl

---

Table: reference.ref_superline_polyester

Approximate dump path: other\constants\ref_superline_polyester.*

Column	Variable Name	Label	Unit
extension
load_mbl

---

Table: reference.ref_superline_steelite

Approximate dump path: other\constants\ref_superline_steelite.*

Column	Variable Name	Label	Unit
extension
load_mbl

---

Table: reference.ref_wake_amplification_factor_cyl

Approximate dump path: other\constants\ref_wake_amplification_factor_cyl.*

Column	Variable Name	Label	Unit
kc_steady_drag_coefficient	Cylinder Wake Amplification Factors	kc/steady Drag Coefficient
amplification_factor_for_smooth_cylinders	Cylinder Wake Amplification Factors	Smooth Cylinder Amplification Factor
amplification_factor_for_rough_cylinders	Cylinder Wake Amplification Factors	Rough Cylinder Amplification Factor

---

Table: reference.ref_wind_drag_coef_rect

Approximate dump path: other\constants\ref_wind_drag_coef_rect.*

Column	Variable Name	Label	Unit
width_length	Rectangular Section Wind Drag Coefficients	Width / Length
height_breadth_between_0_1	Rectangular Section Wind Drag Coefficients	0 < Height / Breadth < 1
height_breadth_less_1	Rectangular Section Wind Drag Coefficients	Height / Breadth = 1
height_breadth_less_2	Rectangular Section Wind Drag Coefficients	Height / Breadth = 2
height_breadth_less_4	Rectangular Section Wind Drag Coefficients	Height / Breadth = 4
height_breadth_less_6	Rectangular Section Wind Drag Coefficients	Height / Breadth = 6
height_breadth_less_10	Rectangular Section Wind Drag Coefficients	Height / Breadth = 10
height_breadth_less_20	Rectangular Section Wind Drag Coefficients	Height / Breadth = 20

---

Table: reference.soil_type

Approximate dump path: soil_type.*

Column	Variable Name	Label	Unit
id
description	Soil Properties Table	Soil Type

---

Table: reference.soil_type_geotechnical_properties

Approximate dump path: other\constants\soil_type_geotechnical_properties.*

Linked to: reference.soil_type

Column	Variable Name	Label	Unit
fk_soil_type_id
drained_soil_friction_angle	Soil Properties Table	Drained Soil Friction Angle	degrees
relative_soil_density	Soil Properties Table	Relative Soil Density	%
buoyant_unit_weight_of_soil	Soil Properties Table	Buoyant Unit Weight of Soil	N/m^3
effective_drained_cohesion	Soil Properties Table	Effective Drained Cohesion	N/m^2
seafloor_friction_coefficient	Soil Properties Table	Seafloor Friction Coefficient
soil_sensitivity	Soil Properties Table	Soil Sensitivity
rock_compressive_strength	Soil Properties Table	Rock Compressive Strength	N/m^2
undrained_soil_shear_strength_constant_term	Soil Properties Table	Undrained Soil / Rock Shear Strength 1	N/m^2
undrained_soil_shear_strength_depth_dependent_term	Soil Properties Table	Undrained Soil / Rock Shear Strength 2	N/m^2

---

Table: reference.vehicle

Approximate dump path: other\vehicle.*

Column	Variable Name	Label	Unit
id
description	Vessels: Cable Laying Vessel Data	Name
	Vessels: Cable Laying Barge Data	Name
	Vessels: Anchor Handling Tug Supply Vessel Data	Name
	Vessels: Helicopter Data	Name
	Vessels: Jackup Vessel Data	Name
	Vessels: Crane Vessel Data	Name
	Vessels: Construction Support Vessel Data	Name
	Vessels: Multicat Data	Name
	Vessels: Crane Barge Data	Name
	Vessels: Barge Data	Name
	Vessels: Crew Transfer Vessel Data	Name
	Vessels: Jackup Barge Data	Name
	Vessels: Tugboat Data	Name

---

Table: reference.vehicle_helicopter

Approximate dump path: other\vehicle\vehicle_helicopter.*

Linked to: reference.vehicle; reference.vehicle_type

Column	Variable Name	Label	Unit
id
fk_vehicle_id
fk_vehicle_type_id
deck_space	Vessels: Helicopter Data	Deck Space	m^{2}
max_deck_load_pressure	Vessels: Helicopter Data	Max Deck Pressure	tonnes/m^{2}
max_cargo_mass	Vessels: Helicopter Data	Max Cargo Mass	tonnes
crane_max_load_mass	Vessels: Helicopter Data	Max Crane Load Mass	tonnes
external_personel	Vessels: Helicopter Data	External Personnel

---

Table: reference.vehicle_shared

Approximate dump path: other\vehicle\vehicle_shared.*

Linked to: reference.vehicle

Column	Variable Name	Label	Unit
id
fk_vehicle_id
gross_tonnage	Vessels: Cable Laying Vessel Data	Gross Tonnage
	Vessels: Jackup Vessel Data	Gross Tonnage
	Vessels: Multicat Data	Gross Tonnage
	Vessels: Crane Barge Data	Gross Tonnage
	Vessels: Crane Vessel Data	Gross Tonnage
	Vessels: Barge Data	Gross Tonnage
	Vessels: Crew Transfer Vessel Data	Gross Tonnage
	Vessels: Cable Laying Barge Data	Gross Tonnage
	Vessels: Anchor Handling Tug Supply Vessel Data	Gross Tonnage
	Vessels: Helicopter Data	Gross Tonnage
	Vessels: Construction Support Vessel Data	Gross Tonnage
	Vessels: Jackup Barge Data	Gross Tonnage
	Vessels: Tugboat Data	Gross Tonnage
length	Vessels: Cable Laying Vessel Data	Length	m
	Vessels: Crane Vessel Data	Length	m
	Vessels: Cable Laying Barge Data	Length	m
	Vessels: Anchor Handling Tug Supply Vessel Data	Length	m
	Vessels: Construction Support Vessel Data	Length	m
	Vessels: Helicopter Data	Length	m
	Vessels: Jackup Vessel Data	Length	m
	Vessels: Multicat Data	Length	m
	Vessels: Crane Barge Data	Length	m
	Vessels: Barge Data	Length	m
	Vessels: Crew Transfer Vessel Data	Length	m
	Vessels: Jackup Barge Data	Length	m
	Vessels: Tugboat Data	Length	m
consumption	Vessels: Cable Laying Vessel Data	Consumption	l/hour
	Vessels: Jackup Vessel Data	Consumption	l/hour
	Vessels: Multicat Data	Consumption	l/hour
	Vessels: Crane Barge Data	Consumption	l/hour
	Vessels: Crane Vessel Data	Consumption	l/hour
	Vessels: Barge Data	Consumption	l/hour
	Vessels: Crew Transfer Vessel Data	Consumption	l/hour
	Vessels: Cable Laying Barge Data	Consumption	l/hour
	Vessels: Anchor Handling Tug Supply Vessel Data	Consumption	m
	Vessels: Helicopter Data	Consumption	l/hour
	Vessels: Construction Support Vessel Data	Consumption	l/hour
	Vessels: Jackup Barge Data	Consumption	l/hour
	Vessels: Tugboat Data	Consumption	l/hour
transit_speed	Vessels: Cable Laying Vessel Data	Transit Speed	m/s
	Vessels: Jackup Vessel Data	Transit Speed	m/s
	Vessels: Multicat Data	Transit Speed	m/s
	Vessels: Crane Barge Data	Transit Speed	m/s
	Vessels: Crane Vessel Data	Transit Speed	m/s
	Vessels: Barge Data	Transit Speed	m/s
	Vessels: Crew Transfer Vessel Data	Transit Speed	m/s
	Vessels: Cable Laying Barge Data	Transit Speed	m/s
	Vessels: Anchor Handling Tug Supply Vessel Data	Transit Speed	m/s
	Vessels: Helicopter Data	Transit Speed	m/s
	Vessels: Construction Support Vessel Data	Transit Speed	m/s
	Vessels: Jackup Barge Data	Transit Speed	m/s
	Vessels: Tugboat Data	Transit Speed	m/s
transit_max_hs	Vessels: Cable Laying Vessel Data	Max Transit Hs	m
	Vessels: Jackup Vessel Data	Max Transit Hs	m
	Vessels: Multicat Data	Max Transit Hs	m
	Vessels: Crane Barge Data	Max Transit Hs	m
	Vessels: Crane Vessel Data	Max Transit Hs	m
	Vessels: Barge Data	Max Transit Hs	m
	Vessels: Crew Transfer Vessel Data	Max Transit Hs	m
	Vessels: Cable Laying Barge Data	Max Transit Hs	m
	Vessels: Anchor Handling Tug Supply Vessel Data	Max Transit Hs	m
	Vessels: Helicopter Data	Max Transit Hs	m
	Vessels: Construction Support Vessel Data	Max Transit Hs	m
	Vessels: Jackup Barge Data	Max Transit Hs	m
	Vessels: Tugboat Data	Max Transit Hs	m
transit_max_tp	Vessels: Cable Laying Vessel Data	Max Transit Tp	s
	Vessels: Jackup Vessel Data	Max Transit Tp	s
	Vessels: Multicat Data	Max Transit Tp	s
	Vessels: Crane Barge Data	Max Transit Tp	s
	Vessels: Crane Vessel Data	Max Transit Tp	s
	Vessels: Barge Data	Max Transit Tp	s
	Vessels: Crew Transfer Vessel Data	Max Transit Tp	s
	Vessels: Cable Laying Barge Data	Max Transit Tp	s
	Vessels: Anchor Handling Tug Supply Vessel Data	Max Transit Tp	s
	Vessels: Helicopter Data	Max Transit Tp	s
	Vessels: Construction Support Vessel Data	Max Transit Tp	s
	Vessels: Jackup Barge Data	Max Transit Tp	s
	Vessels: Tugboat Data	Max Transit Tp	s
transit_max_cs	Vessels: Cable Laying Vessel Data	Max Transit Current Velocity	m/s
	Vessels: Jackup Vessel Data	Max Transit Current Velocity	m/s
	Vessels: Multicat Data	Max Transit Current Velocity	m/s
	Vessels: Crane Barge Data	Max Transit Current Velocity	m/s
	Vessels: Crane Vessel Data	Max Transit Current Velocity	m/s
	Vessels: Barge Data	Max Transit Current Velocity	m/s
	Vessels: Crew Transfer Vessel Data	Max Transit Current Velocity	m/s
	Vessels: Cable Laying Barge Data	Max Transit Current Velocity	m/s
	Vessels: Anchor Handling Tug Supply Vessel Data	Max Transit Current Velocity	m/s
	Vessels: Helicopter Data	Max Transit Current Velocity	m/s
	Vessels: Construction Support Vessel Data	Max Transit Current Velocity	m/s
	Vessels: Jackup Barge Data	Max Transit Current Velocity	m/s
	Vessels: Tugboat Data	Max Transit Current Velocity	m/s
transit_max_ws	Vessels: Cable Laying Vessel Data	Max Transit Wind Velocity	m/s
	Vessels: Jackup Vessel Data	Max Transit Wind Velocity	m/s
	Vessels: Multicat Data	Max Transit Wind Velocity	m/s
	Vessels: Crane Barge Data	Max Transit Wind Velocity	m/s
	Vessels: Crane Vessel Data	Max Transit Wind Velocity	m/s
	Vessels: Barge Data	Max Transit Wind Velocity	m/s
	Vessels: Crew Transfer Vessel Data	Max Transit Wind Velocity	m/s
	Vessels: Cable Laying Barge Data	Max Transit Wind Velocity	m/s
	Vessels: Anchor Handling Tug Supply Vessel Data	Max Transit Wind Velocity	m/s
	Vessels: Helicopter Data	Max Transit Wind Velocity	m/s
	Vessels: Construction Support Vessel Data	Max Transit Wind Velocity	m/s
	Vessels: Jackup Barge Data	Max Transit Wind Velocity	m/s
	Vessels: Tugboat Data	Max Transit Wind Velocity	m/s
mobilisation_time	Vessels: Cable Laying Vessel Data	Mobilisation Time	hours
	Vessels: Jackup Vessel Data	Mobilisation Time	hours
	Vessels: Multicat Data	Mobilisation Time	hours
	Vessels: Crane Barge Data	Mobilisation Time	hours
	Vessels: Crane Vessel Data	Mobilisation Time	hours
	Vessels: Barge Data	Mobilisation Time	hours
	Vessels: Crew Transfer Vessel Data	Mobilisation Time	hours
	Vessels: Cable Laying Barge Data	Mobilisation Time	hours
	Vessels: Anchor Handling Tug Supply Vessel Data	Mobilisation Time	hours
	Vessels: Helicopter Data	Mobilisation Time	hours
	Vessels: Construction Support Vessel Data	Mobilisation Time	hours
	Vessels: Jackup Barge Data	Mobilisation Time	hours
	Vessels: Tugboat Data	Mobilisation Time	hours
mobilisation_percentage_cost	Vessels: Cable Laying Vessel Data	Mobilisation Percentage Cost	pc
	Vessels: Jackup Vessel Data	Mobilisation Percentage Cost	pc
	Vessels: Multicat Data	Mobilisation Percentage Cost	pc
	Vessels: Crane Barge Data	Mobilisation Percentage Cost	pc
	Vessels: Crane Vessel Data	Mobilisation Percentage Cost	pc
	Vessels: Barge Data	Mobilisation Percentage Cost	pc
	Vessels: Crew Transfer Vessel Data	Mobilisation Percentage Cost	pc
	Vessels: Cable Laying Barge Data	Mobilisation Percentage Cost	pc
	Vessels: Anchor Handling Tug Supply Vessel Data	Mobilisation Percentage Cost	pc
	Vessels: Helicopter Data	Mobilisation Percentage Cost	pc
	Vessels: Construction Support Vessel Data	Mobilisation Percentage Cost	pc
	Vessels: Jackup Barge Data	Mobilisation Percentage Cost	pc
	Vessels: Tugboat Data	Mobilisation Percentage Cost	pc
min_day_rate	Vessels: Cable Laying Vessel Data	Min Day Rate	Euro/day
	Vessels: Jackup Vessel Data	Min Day Rate	Euro/day
	Vessels: Multicat Data	Min Day Rate	Euro/day
	Vessels: Crane Barge Data	Min Day Rate	Euro/day
	Vessels: Crane Vessel Data	Min Day Rate	Euro/day
	Vessels: Barge Data	Min Day Rate	Euro/day
	Vessels: Crew Transfer Vessel Data	Min Day Rate	Euro/day
	Vessels: Cable Laying Barge Data	Min Day Rate	Euro/day
	Vessels: Anchor Handling Tug Supply Vessel Data	Min Day Rate	Euro/day
	Vessels: Helicopter Data	Min Day Rate	Euro/day
	Vessels: Construction Support Vessel Data	Min Day Rate	Euro/day
	Vessels: Jackup Barge Data	Min Day Rate	Euro/day
	Vessels: Tugboat Data	Min Day Rate	Euro/day
max_day_rate	Vessels: Cable Laying Vessel Data	Max Day Rate	Euro/day
	Vessels: Jackup Vessel Data	Max Day Rate	Euro/day
	Vessels: Multicat Data	Max Day Rate	Euro/day
	Vessels: Crane Barge Data	Max Day Rate	Euro/day
	Vessels: Crane Vessel Data	Max Day Rate	Euro/day
	Vessels: Barge Data	Max Day Rate	Euro/day
	Vessels: Crew Transfer Vessel Data	Max Day Rate	Euro/day
	Vessels: Cable Laying Barge Data	Max Day Rate	Euro/day
	Vessels: Anchor Handling Tug Supply Vessel Data	Max Day Rate	Euro/day
	Vessels: Helicopter Data	Max Day Rate	Euro/day
	Vessels: Construction Support Vessel Data	Max Day Rate	Euro/day
	Vessels: Jackup Barge Data	Max Day Rate	Euro/day
	Vessels: Tugboat Data	Max Day Rate	Euro/day

---

Table: reference.vehicle_type

Approximate dump path: vehicle_type.*

Column	Variable Name	Label	Unit
id
description

---

Table: reference.vehicle_vessel_anchor_handling

Approximate dump path: other\vehicle\vehicle_vessel_anchor_handling.*

Linked to: reference.vehicle_type; reference.vehicle

Column	Variable Name	Label	Unit
id
fk_vehicle_id
fk_vehicle_type_id
beam	Vessels: Multicat Data	Beam	m
max_draft	Vessels: Multicat Data	Max Draft	m
consumption_towing	Vessels: Multicat Data	Towing Consumption	l/hour
deck_space	Vessels: Multicat Data	Deck Space	m^{2}
max_deck_load_pressure	Vessels: Multicat Data	Max Deck Pressure	tonnes/m^{2}
max_cargo_mass	Vessels: Multicat Data	Max Cargo Mass	tonnes
crane_max_load_mass	Vessels: Multicat Data	Max Crane Load Mass	tonnes
bollard_pull	Vessels: Multicat Data	Bollard Pull	tonnes
anchor_handling_drum_capacity	Vessels: Multicat Data	Anchor Handling Drum Capacity	m
anchor_handling_winch_rated_pull	Vessels: Multicat Data	Anchor Handling Winch Rated Pull	tonnes
external_personel	Vessels: Multicat Data	External Personnel
towing_max_hs	Vessels: Multicat Data	Max Towing Hs	m

---

Table: reference.vehicle_vessel_cable_laying

Approximate dump path: other\vehicle\vehicle_vessel_cable_laying.*

Linked to: reference.vehicle_type; reference.vehicle

Column	Variable Name	Label	Unit
id
fk_vehicle_id
fk_vehicle_type_id
beam	Vessels: Cable Laying Vessel Data	Beam	m
	Vessels: Cable Laying Barge Data	Beam	m
max_draft	Vessels: Cable Laying Vessel Data	Max Draft	m
	Vessels: Cable Laying Barge Data	Max Draft	m
deck_space	Vessels: Cable Laying Vessel Data	Deck Space	m^{2}
	Vessels: Cable Laying Barge Data	Deck Space	m^{2}
max_deck_load_pressure	Vessels: Cable Laying Vessel Data	Max Deck Pressure	tonnes/m^{2}
	Vessels: Cable Laying Barge Data	Max Deck Pressure	tonnes/m^{2}
max_cargo_mass	Vessels: Cable Laying Vessel Data	Max Cargo Mass	tonnes
	Vessels: Cable Laying Barge Data	Max Cargo Mass	tonnes
crane_max_load_mass	Vessels: Cable Laying Vessel Data	Max Crane Load Mass	tonnes
	Vessels: Cable Laying Barge Data	Max Crane Load Mass	tonnes
bollard_pull	Vessels: Cable Laying Vessel Data	Bollard Pull	tonnes
number_turntables	Vessels: Cable Laying Vessel Data	Number of Turntables
	Vessels: Cable Laying Barge Data	Number of Turntables
turntable_max_load_mass	Vessels: Cable Laying Vessel Data	Max Turntable Load Mass	tonnes
	Vessels: Cable Laying Barge Data	Max Turntable Load Mass	tonnes
turntable_inner_diameter	Vessels: Cable Laying Vessel Data	Turntable Inner Diameter	m
	Vessels: Cable Laying Barge Data	Turntable Inner Diameter	m
cable_splice_capabilities	Vessels: Cable Laying Vessel Data	Cable Splice Capabilities
	Vessels: Cable Laying Barge Data	Cable Splice Capabilities
dynamic_positioning_capabilities	Vessels: Cable Laying Vessel Data	Dynamic Positioning Capabilities
	Vessels: Cable Laying Barge Data	Dynamic Positioning Capabilities
external_personel	Vessels: Cable Laying Vessel Data	External Personnel
	Vessels: Cable Laying Barge Data	External Personnel

---

Table: reference.vehicle_vessel_cargo

Approximate dump path: other\vehicle\vehicle_vessel_cargo.*

Linked to: reference.vehicle; reference.vehicle_type

Column	Variable Name	Label	Unit
id
fk_vehicle_id
fk_vehicle_type_id
beam	Vessels: Crane Barge Data	Beam	m
	Vessels: Crane Vessel Data	Beam	m
	Vessels: Barge Data	Beam	m
	Vessels: Crew Transfer Vessel Data	Beam	m
	Vessels: Construction Support Vessel Data	Beam	m
max_draft	Vessels: Crane Barge Data	Max Draft	m
	Vessels: Crane Vessel Data	Max Draft	m
	Vessels: Barge Data	Max Draft	m
	Vessels: Crew Transfer Vessel Data	Max Draft	m
	Vessels: Construction Support Vessel Data	Max Draft	m
deck_space	Vessels: Crane Barge Data	Deck Space	m^{2}
	Vessels: Crane Vessel Data	Deck Space	m^{2}
	Vessels: Barge Data	Deck Space	m^{2}
	Vessels: Crew Transfer Vessel Data	Deck Space	m^{2}
	Vessels: Construction Support Vessel Data	Deck Space	m^{2}
max_deck_load_pressure	Vessels: Crane Barge Data	Max Deck Pressure	tonnes/m^{2}
	Vessels: Crane Vessel Data	Max Deck Pressure	tonnes/m^{2}
	Vessels: Barge Data	Max Deck Pressure	tonnes/m^{2}
	Vessels: Crew Transfer Vessel Data	Max Deck Pressure	tonnes/m^{2}
	Vessels: Construction Support Vessel Data	Max Deck Pressure	tonnes/m^{2}
max_cargo_mass	Vessels: Crane Barge Data	Max Cargo Mass	tonnes
	Vessels: Crane Vessel Data	Max Cargo Mass	tonnes
	Vessels: Barge Data	Max Cargo Mass	tonnes
	Vessels: Crew Transfer Vessel Data	Max Cargo Mass	tonnes
	Vessels: Construction Support Vessel Data	Max Cargo Mass	tonnes
crane_max_load_mass	Vessels: Crane Barge Data	Max Crane Load Mass	tonnes
	Vessels: Crane Vessel Data	Max Crane Load Mass	tonnes
	Vessels: Barge Data	Max Crane Load Mass	tonnes
	Vessels: Crew Transfer Vessel Data	Max Crane Load Mass	tonnes
	Vessels: Construction Support Vessel Data	Max Crane Load Mass	tonnes
dynamic_positioning_capabilities	Vessels: Crane Barge Data	Dynamic Positioning Capabilities
	Vessels: Crane Vessel Data	Dynamic Positioning Capabilities
	Vessels: Barge Data	Dynamic Positioning Capabilities
	Vessels: Crew Transfer Vessel Data	Dynamic Positioning Capabilities
	Vessels: Construction Support Vessel Data	Dynamic Positioning Capabilities
external_personel	Vessels: Crane Barge Data	External Personnel
	Vessels: Crane Vessel Data	External Personnel
	Vessels: Barge Data	External Personnel
	Vessels: Crew Transfer Vessel Data	External Personnel
	Vessels: Construction Support Vessel Data	External Personnel

---

Table: reference.vehicle_vessel_jackup

Approximate dump path: other\vehicle\vehicle_vessel_jackup.*

Linked to: reference.vehicle_type; reference.vehicle

Column	Variable Name	Label	Unit
id
fk_vehicle_id
fk_vehicle_type_id
beam	Vessels: Jackup Vessel Data	Beam	m
	Vessels: Jackup Barge Data	Beam	m
max_draft	Vessels: Jackup Vessel Data	Max Draft	m
	Vessels: Jackup Barge Data	Max Draft	m
deck_space	Vessels: Jackup Vessel Data	Deck Space	m^{2}
	Vessels: Jackup Barge Data	Deck Space	m^{2}
max_deck_load_pressure	Vessels: Jackup Vessel Data	Max Deck Pressure	tonnes/m^{2}
	Vessels: Jackup Barge Data	Max Deck Pressure	tonnes/m^{2}
max_cargo_mass	Vessels: Jackup Vessel Data	Max Cargo Mass	tonnes
	Vessels: Jackup Barge Data	Max Cargo Mass	tonnes
crane_max_load_mass	Vessels: Jackup Vessel Data	Max Crane Load Mass	tonnes
	Vessels: Jackup Barge Data	Max Crane Load Mass	tonnes
dynamic_positioning_capabilities	Vessels: Jackup Vessel Data	Dynamic Positioning Capabilities
	Vessels: Jackup Barge Data	Dynamic Positioning Capabilities
jackup_max_water_depth	Vessels: Jackup Vessel Data	Max Jack-Up Water Depth	m
	Vessels: Jackup Barge Data	Max Jack-Up Water Depth	m
jackup_speed_down	Vessels: Jackup Vessel Data	Jack-Up Lowering Velocity	m/min
	Vessels: Jackup Barge Data	Jack-Up Lowering Velocity	m/min
jackup_max_payload_mass	Vessels: Jackup Vessel Data	Max Jack-Up Payload	tonnes
	Vessels: Jackup Barge Data	Max Jack-Up Payload	tonnes
external_personel	Vessels: Jackup Vessel Data	External Personnel
	Vessels: Jackup Barge Data	External Personnel
jacking_max_hs	Vessels: Jackup Vessel Data	Max Jacking Hs	m
	Vessels: Jackup Barge Data	Max Jacking Hs	m
jacking_max_tp	Vessels: Jackup Vessel Data	Max Jacking Tp	s
	Vessels: Jackup Barge Data	Max Jacking Tp	s
jacking_max_cs	Vessels: Jackup Vessel Data	Max Jacking Current Velocity	m/s
	Vessels: Jackup Barge Data	Max Jacking Current Velocity	m/s
jacking_max_ws	Vessels: Jackup Vessel Data	Max Jacking Wind Velocity	m/s
	Vessels: Jackup Barge Data	Max Jacking Wind Velocity	m/s

---

Table: reference.vehicle_vessel_tugboat

Approximate dump path: other\vehicle\vehicle_vessel_tugboat.*

Linked to: reference.vehicle; reference.vehicle_type

Column	Variable Name	Label	Unit
id
fk_vehicle_id
fk_vehicle_type_id
beam	Vessels: Tugboat Data	Beam	m
max_draft	Vessels: Tugboat Data	Max Draft	m
consumption_towing	Vessels: Tugboat Data	Towing Consumption	l/hour
bollard_pull	Vessels: Tugboat Data	Bollard Pull	tonnes

Footnotes

[1] (1,2)

Individual DTOcean modules may follow different conventions in their specific APIs.
